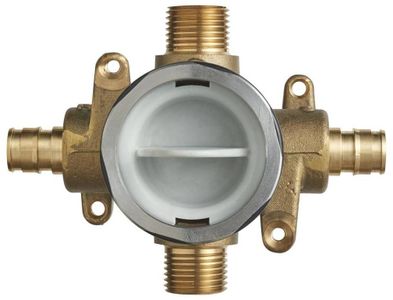

American Standard Flash™ Copper Pressure Balance Rough-In Valve

American Standard

Model #:

RU108

Model #: RU108
636584
American Standard
$99,999.00

At a Glance

Product Dimensions 3.63"h x 4.75"w x 2.75"d

Designed for fast and efficient installation, the Flash Shower Rough-in Valve provides flexibility for every situation. The Rough-in Valve features a flat back and compact body to ensure a secure and simplified install process that can accommodate smaller spaces. A flush plug is included, which allows both Hot & Cold to be flushed simultaneously for quicker installation and less downtime. Stainless steel fixation ring, with sure-grip flats, keeps flush plug and cartridge in place without screws. Cartridge sold separately.Read More

Request a Quote
View Delivery & Pickup Options
Add Zip Code

Get to know this product.

Product Overview

Product Overview

Flush Plug: Eliminates the need to remove cartridge during installation and allows installer to flush the lines without cross flow. Can be tested using flush plug with air (200 psi) or water (300 psi).

Stainless Steel Retaining Ring with Flats: Secures flush plug/ cartridge in place and eliminates need for screws. Flats make it simple to loosen ring for quick, easy insertion/removal of flush plug/cartridge.

Flat Back: Allows valve to be mounted flush against cross brace for easy and solid installation

PEX Connections: Fast and easy installation without adaptors reducing leak points.

Cast DZR Brass Valve Body: Resists corrosion due to high chloride and pH levels in water

Back-to-Back Capability: Hot and cold can be reversed quickly and easily.

Exclusive Plaster Guard: Plaster guard is designed to protect valve and act as a guide during installation. It can serve as mounting support for thin-wall installations.

Wide Rough-in Range: From 1-3/4" to 2-3/4" from finished wall to the back of the valve.

Cartridge Ships with Trim

Useful Documents
Specification Sheet
Installation Instructions
Specifications

General Specs

Depth (in.)2.75
Width (in.)4.75
Height (in.)3.63
CollectionFlash™
Valve FunctionPressure Balance
Pressure BalancedYes
Shower Valve TypePressure Balancing Valves
Manufacturer WarrantyLimited Warranty. See store for full details.
FinishCopper
ADA CompliantNo
Cec CompliantNo
Watersense CertifiedNo
Low Lead CompliantNo
Scald GuardYes
Cartridge IncludedNo
MaterialMetal
Trim IncludedNo
ColorCopper
Inlet Diameter.5
Outlet Diameter (in.).5

WarningProposition 65 Warning for California Residents
