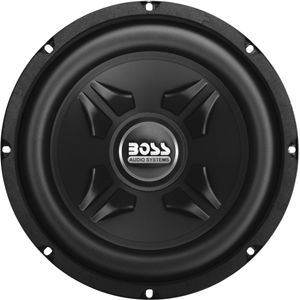

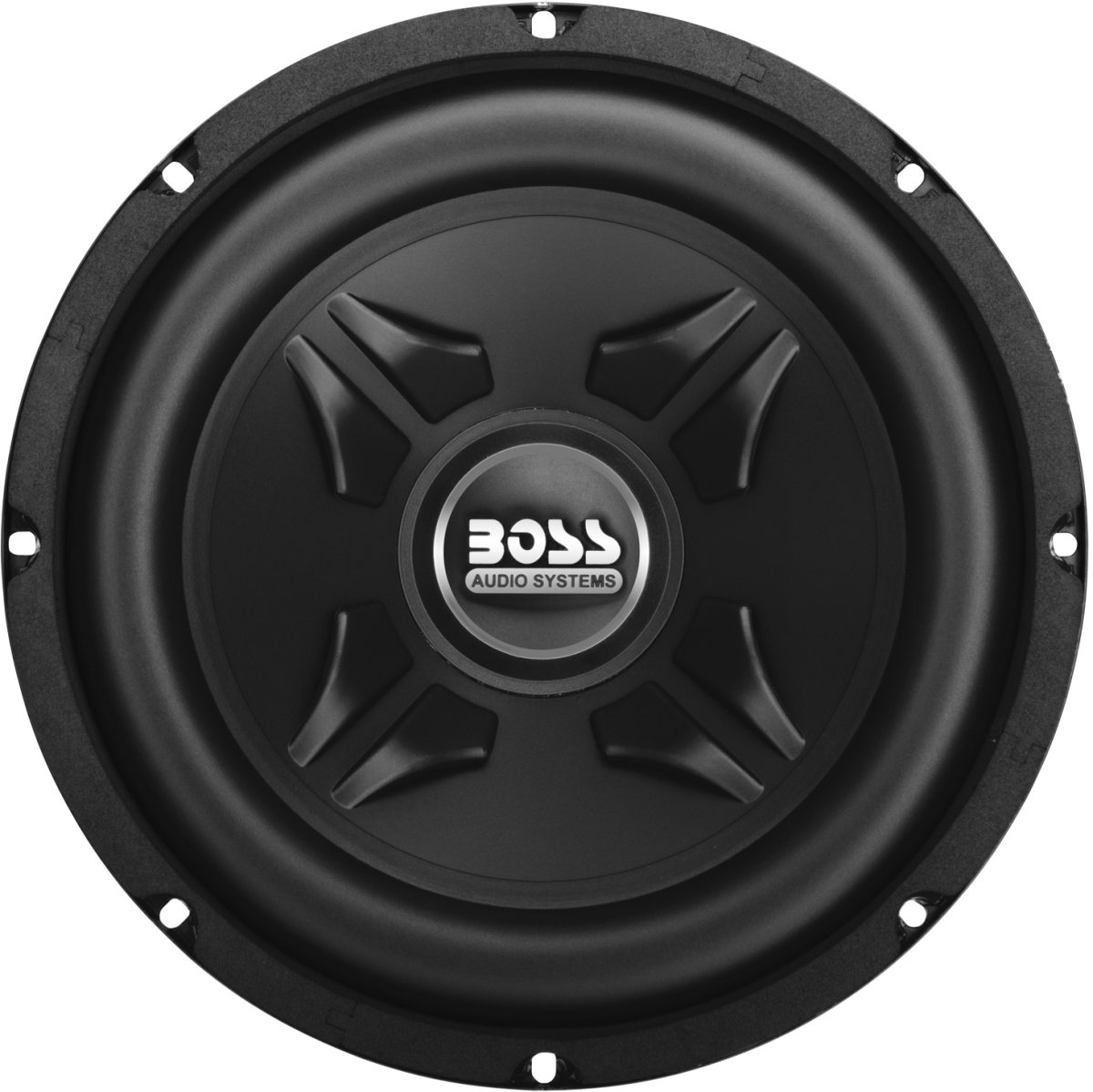

Chaos Exxtreme- 10" single voice coil (4 Ohm) 800W subwoofer.Read More
One 10" Woofer with Single 4 ohm 2.5" Voice Coil
800 Watts Max 400 Watts RMS Power Handling
87dB Sensitivity, 36 Hz Resonant Frequency
Polypropylene Cone and Rubber Surround
Works in .65 CuFt Sealed or 1 CuFt Ported Enclosure
A subwoofer with a single voice coil can be powered by an appropriately matched amplifier or can be combined with multiple single voice coil subwoofers to achieve a variety of impedances to match your amp set up. Single voice coil subwoofers are generally ideal for low to medium-power applications.
This subwoofer will thrive in well in a ported enclosure. A ported enclosure is easy to spot because of the vent (port). This enclosure will be bigger than a sealed enclosure and it also has greater SPL output, resulting in chest-thumping bass with authority. For proper tuning and optimum subwoofer performance in a ported enclosure, we recommend using an amplifier with a subsonic filter.
This subwoofer will operate well in a sealed enclosure that will yield solid, tight bass. You can either purchase a pre-fabricated enclosure or build one to suit your installation needs. Sealed enclosures are relatively easy to build and are the smallest enclosure the subwoofer is designed for.
General Specs | |
| Color | Black |
| Impedance | 4 Ohms |
| Mount Depth | 4.56 |
| Collection | Chaos Exxtreme |
| Manufacturer Warranty | 1 Year |
| RMS Power Handling (Watts) | 400 |
| Peak Power Rating (Watts) | 800 |
| Subwoofer Size | 10" |
Mounting Dimensions | |
| MOUNTING DIAMETER | 9.2" |
T/S Parameters | |
| FS | 36 Hz |
| QES | .76 |
| QMS | 4.23 |
| QTS | .64 |
| VAS | 1.53 CuFt |
| XMAX (ONE-WAY) | 7 mm |
| SENSITIVITY (1W/1M) | 87 dB |
Enclosure Specifications | |
| RECOMMENDED SEALED | .65 CuFt |
| RECOMMENDED PORT | 1 CuFt |
| PORT DIMENSION | Round 3.5 Inch |
| PORT LENGTH | 10" |
| PORT FREQUENCY | 38 Hz |
