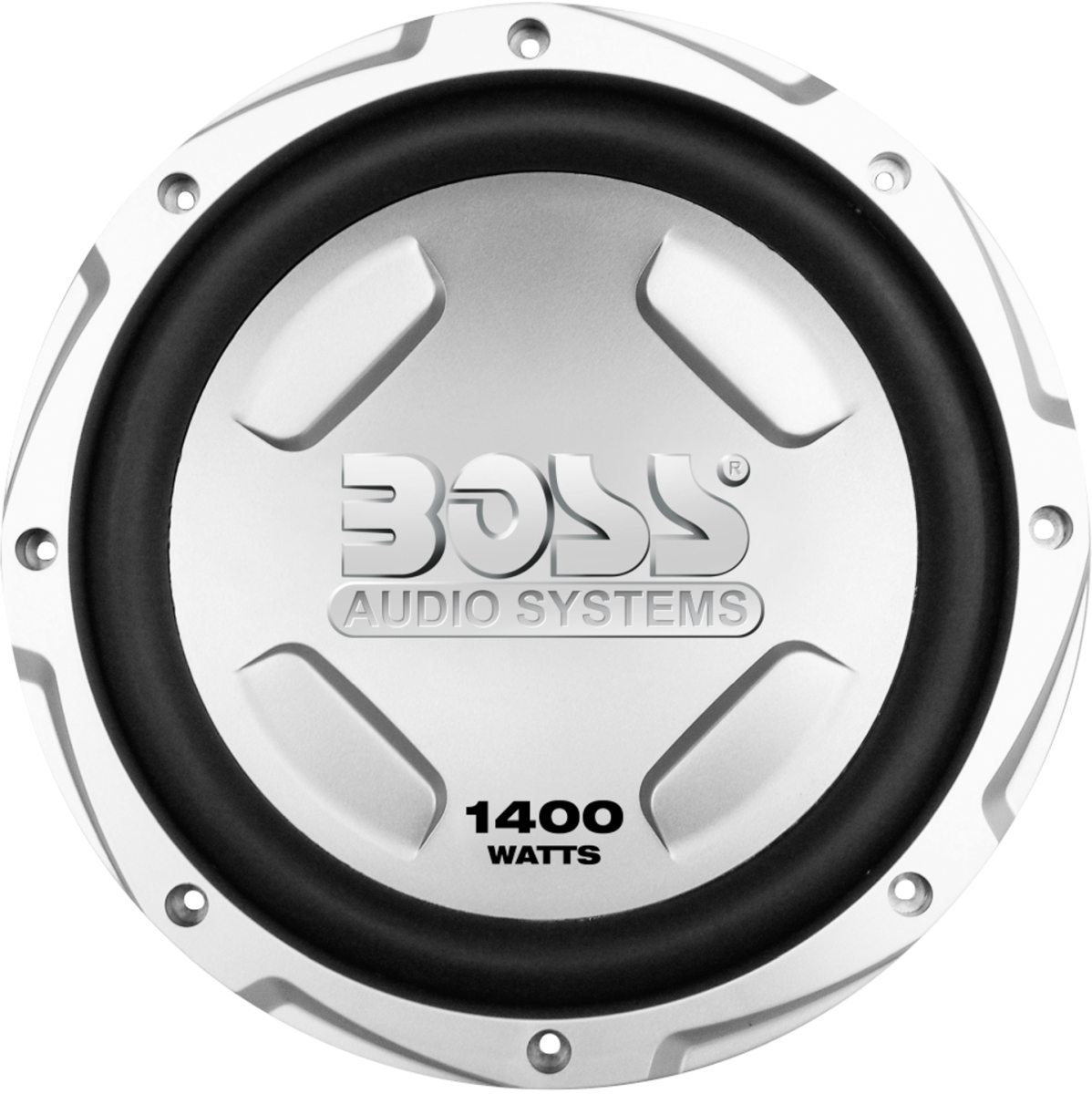

Chaos Exxtreme- 12" single voice coil (4 Ohm) 1400W subwoofer.Read More
One 12" Woofer with Single 4 ohm 2" Copper Voice Coil
1400 Watts Max 700 Watts RMS Power Handling
82dB Sensitivity, 28 Hz Resonant Frequency
Custom Tooled High Efficiency Injection Cone and Foam Surround
Works in 1.2 CuFt Sealed enclosure
This subwoofer will operate well in a sealed enclosure that will yield solid, tight bass. You can either purchase a pre-fabricated enclosure or build one to suit your installation needs. Sealed enclosures are relatively easy to build and are the smallest enclosure the subwoofer is designed for.
A subwoofer with a single voice coil can be powered by an appropriately matched amplifier or can be combined with multiple single voice coil subwoofers to achieve a variety of impedances to match your amp set up. Single voice coil subwoofers are generally ideal for low to medium-power applications.
General Specs | |
| Color | Black/Silver |
| Impedance | 4 Ohms |
| Mount Depth | 5.4 |
| Collection | Chaos Exxtreme |
| Manufacturer Warranty | 1 Year |
| RMS Power Handling (Watts) | 700 |
| Peak Power Rating (Watts) | 1400 |
| Subwoofer Size | 12" |
Mounting Dimensions | |
| MOUNTING DIAMETER | 11.1" |
T/S Parameters | |
| FS | 28 Hz |
| QES | 1.18 |
| QMS | 3.33 |
| QTS | .87 |
| VAS | 2.18 CuFt |
| XMAX (ONE-WAY) | 8 mm |
| SENSITIVITY (1W/1M) | 82 dB |
Enclosure Specifications | |
| RECOMMENDED SEALED | 1.2 CuFt |
| PORT FREQUENCY | 40 Hz |
