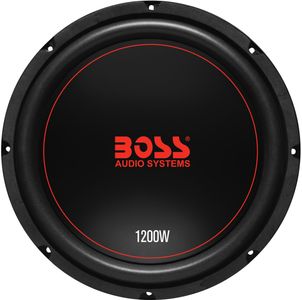

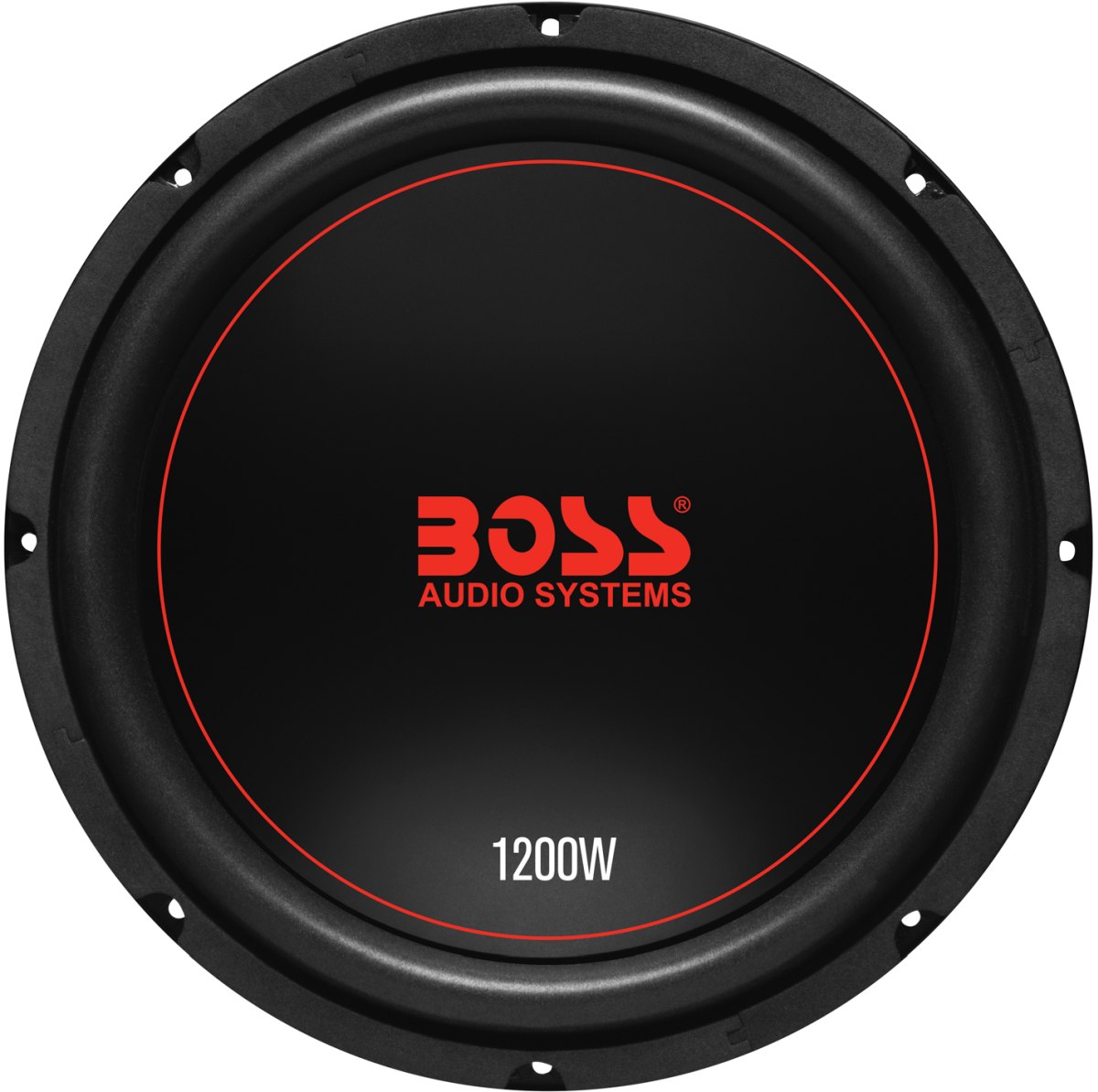

Chaos Exxtreme- 12" dual voice coil (4 Ohm) 1200W subwoofer.Read More
One 12" Woofer with Dual 4 ohm 2.5" Voice Coil
1200 Watts Max 600 Watts RMS Power Handling
85dB Sensitivity, 32 Hz Resonant Frequency
Polypropylene Cone and Rubber Surround
Works in 1.15 CuFt Sealed or 1.8 CuFt Ported Enclosure
A Dual voice coil subwoofer provides more wiring configuration possibilities. If you add additional subwoofers, wiring configurations can be easily matched to optimize the amps power output. Power handling is also increased. Dual voice coil subwoofers are ideal for medium to high-power applications.
This subwoofer will thrive in well in a ported enclosure. A ported enclosure is easy to spot because of the vent (port). This enclosure will be bigger than a sealed enclosure and it also has greater SPL output, resulting in chest-thumping bass with authority. For proper tuning and optimum subwoofer performance in a ported enclosure, we recommend using an amplifier with a subsonic filter.
This subwoofer will operate well in a sealed enclosure that will yield solid, tight bass. You can either purchase a pre-fabricated enclosure or build one to suit your installation needs. Sealed enclosures are relatively easy to build and are the smallest enclosure the subwoofer is designed for.
General Specs | |
| Color | Black |
| Impedance | 4 Ohms |
| Mount Depth | 4.83 |
| Collection | Chaos Exxtreme |
| Manufacturer Warranty | 1 Year |
| RMS Power Handling (Watts) | 600 |
| Peak Power Rating (Watts) | 1200 |
| Subwoofer Size | 12" |
Mounting Dimensions | |
| MOUNTING DIAMETER | 11.04" |
T/S Parameters | |
| FS | 32 Hz |
| QES | .83 |
| QMS | 2.24 |
| QTS | .61 |
| VAS | 3.77 CuFt |
| XMAX (ONE-WAY) | 9 mm |
| SENSITIVITY (1W/1M) | 85 dB |
Enclosure Specifications | |
| RECOMMENDED SEALED | 1.15 CuFt |
| RECOMMENDED PORT | 1.8 CuFt |
| PORT DIMENSION | Round 4 Inch |
| PORT LENGTH | 12" |
| PORT FREQUENCY | 34 Hz |
