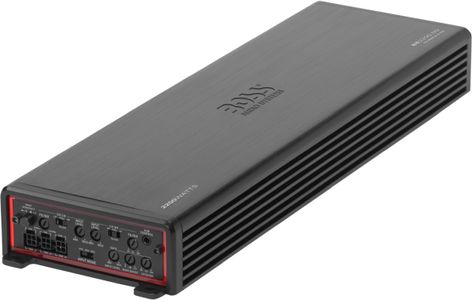

BOSS® Audio Systems Elite Model 2200W High Output 5 Channel Amplifier

Product Overview

Full Range, Class D, MOSFET Power Supply

High and Low Level Inputs

Variable High Pass Crossover, Variable Low Pass Crossover, Variable Bass Boost

Include Remote Subwoofer Control

Illuminated End Panel Strips

5 Years Elite Warranty

2 Ohm Stable

The lowest impedance accepted by this amplifier is 1 ohm. Amplifiers that are 1 ohm stable produce the most power possible from the amp. An amplifier capable of delivering power at a 1 ohm load is usually reserved for serious subwoofers that can handle the power. Please note this particular amp needs a healthy electrical system including a low gauge wire capable of delivering the necessary current.

Bridgeable

Bridging an amplifier means to combine channels of a multi-channel amplifier to get more power or flexibility out of it. For instance, on a 4 channel amp, channels 1 and 2 could be used normally for your speakers, and channels 3 and 4 can be bridged for more power to a single subwoofer. A 2 channel amp can also be bridged to power a single subwoofer.

Class D Amps

Class D is a high speed switching amplifier technology that is more efficient, generates less heat and draws less power than traditional Class A/B amps. We use Class D in our monoblock amplifiers to give you massive amounts of power in a relatively small footprint for clean, powerful, bass.

High and Low Level Inputs

An amplifier with both high-level and low-level inputs provides flexibility by allowing you to build an audio system using virtually any standard factory or aftermarket source unit. High-level (speaker level) inputs accept the signal from the speakers, while low-level (RCA) inputs accept the signal from the pre-amp outputs of the source unit.

Illuminated End Panel Strips

The end panels of this Rage Series amp has Blue Illuminated light strips that glow when the amp is turned on.

Protection

If the amplifier gets too hot, the thermal protection circuit turns the amp off and allows the amp to cool down before turning it back on. If a speaker fails causing an electrical short, the protection circuit will automatically cut the output and remain in that state until the short is resolved. These safety features give you peace of mind knowing the amplifier is constantly monitoring conditions to protect itself.

Subwoofer Level Control

The ability to boost or attenuate the sub level when an amp and subwoofer are connected to the subwoofer pre-amp output.

Switchable Input Sensitivity

Switchable Input Sensitivity gives you the freedom to connect the amp to any standard source unit and have peace of mind it will be within range to properly match the output of the source unit allowing you to use the volume controls on your source unit the way it was designed.

Variable Bass Boost

Variable Bass Boost allows you to adjust the low bass within the boost range to just the way you like it.

Variable Gain Control

Variable Gain Control lets you balance the amps output with the speakers or subs the amp is driving. Too much gain will lead to distortion and too little will lead to clipping.

Variable High Pass Filter

Variable high-pass filter gives you control over the frequencies that pass through to the full range speakers.

Variable Low Pass Filter

Variable low-pass filter gives you control over the frequencies that pass through to the subwoofer.
