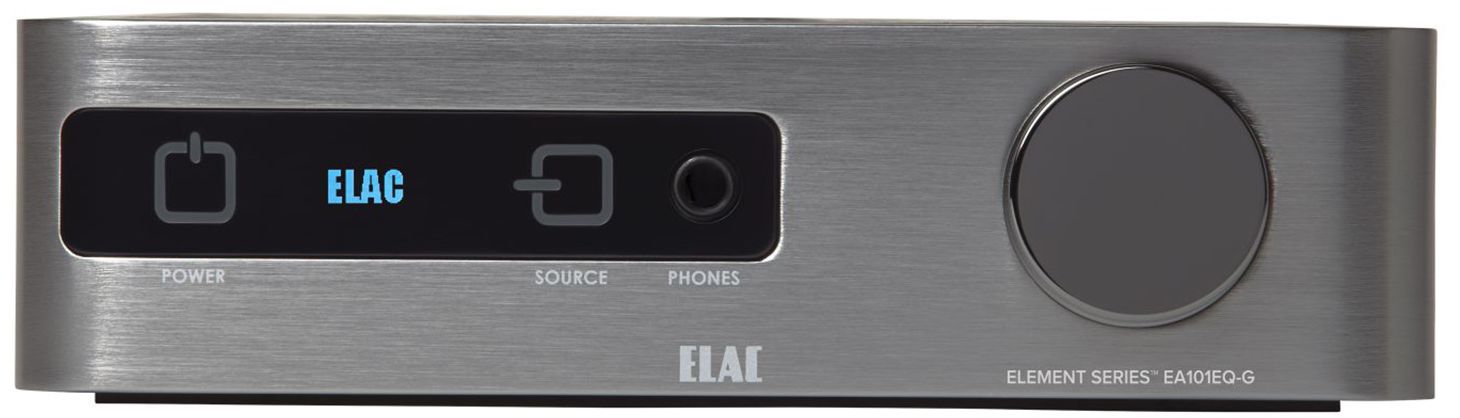

Elac EA101EQ-G EA Integrated Amplifier


Model #:

EA101EQ-G

Model #: EA101EQ-G
276043
ELAC
$99,999.00

At a Glance

Product Dimensions 6"h x 12"w x 14"d

Elac EA101EQ-G EA Series Integrated Amplifier with ABC room correction for sale. Shop your authorized Elac dealer for the best integrated amp deals.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

EA Series: Power, Performance, and Value

The launch of ELAC’s Debut and Uni–Fi series loudspeakers called for a great–sounding amplifier that delivers the performance, flexibility and value essential for a product to carry the ELAC name. So where none existed before, ELAC engineers created the EA Series. Starting with a clean–sheet, their design brief was clear: build the most powerful, versatile, easy–to–use integrated amplifier imaginable; do it without compromising sound, reliability and a great user experience; and price it so fairly that it becomes a hands–down choice, even when compared against units at many times the price.

80 Watts–Per–Channel Integrated Amp With DSP

This integrated amplifier marks ELAC’s return to the amplifier category. The EA Series EA101EQ–G Integrated Amplifier solves two of the biggest problems with two–channel audio: proper blending of a subwoofer with your main speakers and room correction. Our advanced DSP and innovative smartphone application provide all the tools necessary for anyone to achieve a true audiophile system at an affordable price.

Not Your Typical Amplifier

The Element EA101EQ–G makes quite a statement and is guaranteed to change the rules of the game for integrated amplifiers, with sound quality and feature–rich control flexibility that make it the go–to solution for a no–compromise sound system. Once you experience what it can do—especially with the new Debut, Uni–Fi, or Line 240.3 loudspeakers—your world of sound just might be altered forever.

Broadband Frequency Response: 20Hz to 40kHz +/- 1.8dB

Signal-to-Noise Ratio: (Full Power Digital input): 101dB

Digital inputs: 3 total; 2 optical / 1 coaxial (192kHz 24-bit)

Useful Documents
Specifications

General Specs

Depth (in.)14
Height (in.)6
Width (in.)12
Manufacturer Warranty1 Year Parts & Labor
Product Weight (lbs.)8.8
ColorGray

General

AmplifierBASH Digital Fidelity Tracking Amplifier
Power Output Continuous2 x 80 Watts 2 channels driven into 4 ohms @ 1kHz; 2 x 40 Watts 2 channels driven into 8 ohms @ 1kHz; 2 x 70 Watts 2 channels driven into 2 ohms @ 1kHz
Power Output Burst (CEA 2010")120 Watts 1 channel driven into 4 ohms @ 1kHz; 65 Watts 1 channel driven into 8 ohms @ 1kHz; 170 Watts 1 channel driven into 2 ohms @ 1kHz
Power and THD +N 1kHz4 ohms 70 Watts @ .07%; 8 ohms 40 Watts @ .03%
Signal-To-Noise Ratio(Full Power Digital input): 101dB
Broadband Frequency Response20Hz to 40kHz +/- 1.8dB
Analog Inputs2
Digital Inputs3 total; 2 optical / 1 coaxial (192kHz 24-bit)
USB Input192kHz 24-bit asynchronous
Subwoofer Output1
Headphone Output1 (100mW @ 16 ohms)
Bluetooth AudioYes with aptX
Audio DecodingDolby Digital
DisplayOEL
App ControlYes, iOS and Android control app (Android App available now, iOS App will be available mid December). A Bluetooth 4.0 low-energy Android or iOS device is required to use this application.
Room CorrectionABC (Auto Blend & Calibrate) All specifications subject to change.
Power ConsumptionPower Off 120Vac: .86W; Auto Off 120Vac: 5.45W
WarningProposition 65 Warning for California Residents
