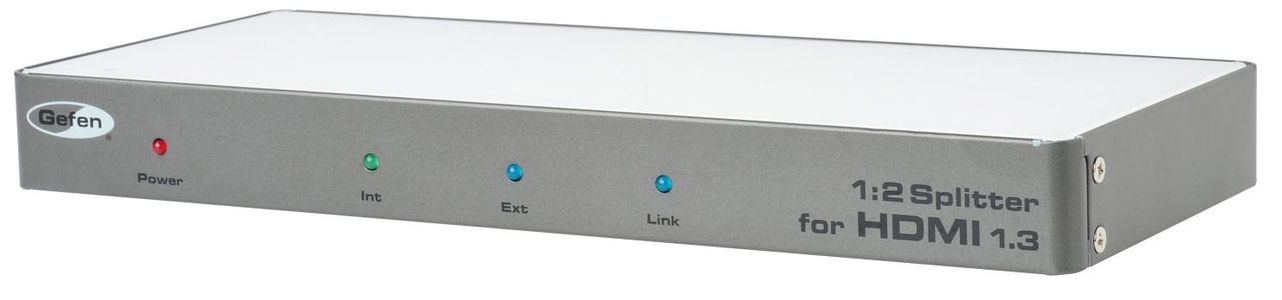

Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio
Model #: EXT-HDMI1.3-142D
399695
Gefen
$99,999.00
At a Glance
Product Dimensions 1"h x 10.25"w x 4.25"d
Split HDMI 1.3 to 2 HDTV Displays -- with additional optical digital audio outputRead More
Product Dimensions 1"h x 10.25"w x 4.25"d
Split HDMI 1.3 to 2 HDTV Displays -- with additional optical digital audio outputRead More
The EXT-HDMI1.3-142D 1:2 Splitter for HDMI 1.3 with Digital Audio sends a Hi-Def A/V source to up to two HDTV displays at the same time without losing quality or resolution. This product works with any Hi-Def source supporting resolutions up to 1080p Full HD with Deep Color, 3DTV pass-through, and lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio. A TOSLINK output on the rear of the Splitter feeds digital audio to an external amplifier or receiver for additional installation flexibility.
Full HD resolutions up to 1080P (1920x1080) are supported.
Support for 2 channel PCM, and up to 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through from the sources to the HDMI outputs.
Simultaneously displays a single Hi-Def source on up to two (2) HDTV displays without signal loss
Maintains sharp HDTV resolutions up to 1080p Full HD and 2K
3DTV Pass-Through
EDID Management for rapid integration of sources and display devices.
Locking HDMI Connectors
Built-in TOSLINK audio output connector
Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter
HDMI and HDCP compliant
General Specs | |
| Depth (in.) | 4.25 |
| Width (in.) | 10.25 |
| Height (in.) | 1 |
| Manufacturer Warranty | 2 Year |
| Color Finish Name | Gray |
General | |
| Video Amplifier Bandwidth | 225 MHz |
| Input Video Signal | 1.2 Volts p-p |
| Input DDC Signal | 5 Volts p-p (TTL) |
| Single Link Range | 1080P/1920 x 1200 |
| HDMI Input Connector | Type A, 19-pin female |
| HDMI Output Connectors | (2) Type A 19-pin female |
| Audio Output Connector | TOSLINK |
| Power Supply | 5V DC |
| Power Consumption | 13 Watts (max.) |
| Operating Temperature | 0 - 40 |
In The Box | |
| Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio (EXT-HDMI1.3-142D) | (1) |
| 6 ft. HDMI Cable (M-M) (CAB-HD-LCK-06MM) | (1) |
| 5V DC Power Supply (EXT-PS526AIP) | (1) |
| Quick-Start Guide (QSG-HDMI1.3-142D) | (1) |
