Product Overview
This product is HDCP compliant. Input resolutions up to 1080p Full HD (60 Hz) and output resolutions up to 4K 60 Hz 4:4:4 (18 Gbps, 600 MHz TMDS clock) are supported. Audio from any of the four HDMI sources can be selected via IR, RS-232, or IP, for playback through the HDMI output and the L/R analog audio output. The analog audio is de-embedded from the HDMI output and can be routed to an outboard sound-reinforcement system, adding presence and impact to AV presentations. Factory presets provide most commonly used arrangements of windows on a display, including single window output. Additional programmable presets allow the user to store and recall custom-configured window arrangements. Presets are accessible via the front panel buttons, On Screen interface, or the web server interface.
Features
Controllable via front panel controls, IR, IP (web server interface, Telnet, and UDP), and RS-232
Input resolutions up to 1080p Full HD (60 Hz), with HDCP 1.4
Output resolutions up to 4K 60 Hz 4:4:4
User-selectable playback of HDMI audio content from any of the four inputs
Analog L/R Audio Breakout for use with outboard amplification systems
Easy to use on-screen Graphical User Interface (GUI) and web server interface
Handheld IR remote control and IR Extender input on back panel
Seamless switching ensures no switching delay and no picture loss during transitions
Field-upgradable firmware using the Gefen Syner-G software

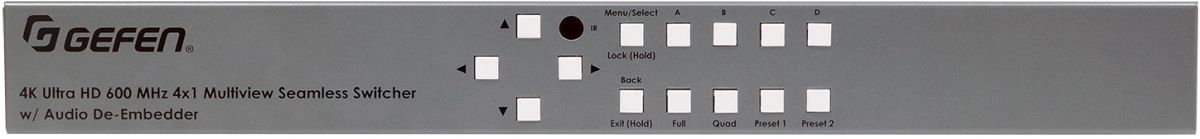

Default pre-configured Multiview window arrangements can be accessed via two front panel preset push-buttons
Custom user-configurable Multiview window layouts can be accessed via two front panel preset push-buttons and via OSD
Locking power supply connector
1U tall rack-mountable enclosure, rack ears included
