Gefen 4K Ultra HD 8x8 Matrix for HDMI

Product Overview

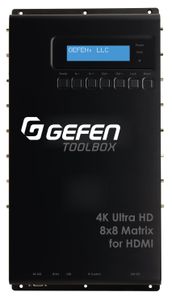

The Gefen GTB-HD4K2K-8482-BLK ToolBox 8x8 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. This HDCP 1.4 compliant matrix routes eight Ultra HD sources to any eight 4K Ultra HD displays with HDMI inputs. The Gefen Syner-G software's Discovery and Show-Me features simplify initial IP configuration of this matrix. Each source can be routed to any display location, using the front-panel push buttons or the included handheld IR Remote Control. The matrix can also be controlled via RS-232, Telnet, UDP, and the Gefen intuitive and easy-to-use web server interface. An easy-to-read backlit front panel display indicates the current routing status and IP settings.

Video Support

Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 4K DCI (4096 x 2160 at 24 and 30 Hz), 1080p Full HD, and 1920x1200 (WUXGA). This HDCP compliant matrix also supports Deep Color and 3D signal.

Audio Support

Multi-channel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through.

Maximum Pixel Clock: 300 MHz

HDMI Input Connectors: (6) Type A 19-pin female, locking

HDMI Output Connectors: (2) Type A 19-pin female, locking

Digital Audio Outputs: (2) TOSLINK®

USB Port: (1) Mini-B

RS-232 serial port: (1) DB-9, female

Ethernet (IP Control) Port: (1) RJ-45 jack

FST Selector: (1) tact-type, recessed push-button

Audio Selector: (1) tact-type, recessed push-button

EDID Selector: (1) tact-type, recessed push-button

Routing Selectors: (2) tact-type push-buttons

Power Indicator: (1) LED, blue

FST Indicators: (2) LED, green

Audio Indicators: (2) LED, green

EDID Indicators: (3) LED, green

Routing Indicators: (12) LED, green

IR Sensor: (1), on front panel

R Extender Port (Receiver): (1) 3.5mm mini-stereo jack

DC Power Connector: (1) Locking type

Power Supply: 5V DC

Power Consumption: 20 Watts (max.)
