Product Dimensions .65"h x 6"w x 4"d

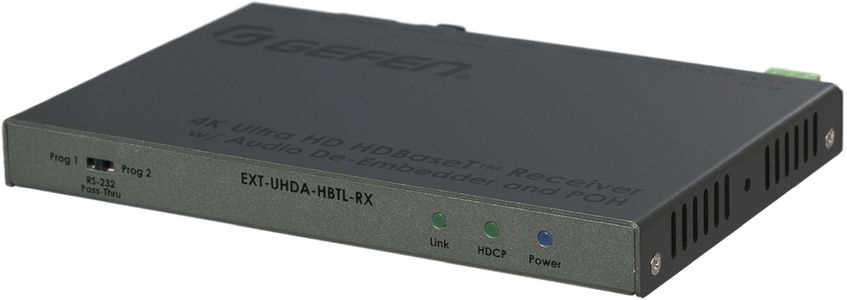

The Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT Receiver that can extend HDMI up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K, over a single CAT-5e cable.Read More
It also de-embeds analog L/R, TOSLINK® optical digital, and coaxial digital audio from the video for use with a separate audio system, enhancing the impact of presentations. This Receiver uses Gefen’s implementation of the HDBaseT technology with enhanced functionality. It accommodates 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency, and supports HDMI 2.0 resolutions up to 4K Cinema-DCI (4096 x 2160 to 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:2:0, or 30 Hz 4:4:4), with HDCP 2.2 or 1.4. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI output. The EXT-UHDA-HBTL-RX also extends RS-232 and 2-way IR when used with a compatible Sender unit, facilitating the control of A/V sources placed near the Sender from the viewing location, and sending commands from the head end to control the display or another device placed near the Receiver unit.
Supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
Extends HDMI, 2-way IR, and RS-232 over a single CAT-5e:
4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0), up to 130 feet/40 meters (8-bit color)
4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
4K Cinema-DCI (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
1080p Full HD (60 Hz) or WUXGA (1920×1200 @ 60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
RS-232 control of switching, scaler, and EDID management functions of a compatible Sender
Bi-Directional RS-232 extension when used with a compatible Sender
2-way IR extension when used with a compatible Sender
Digital (optical and coaxial) and Analog audio breakout
§ Bi-Directional Power over HDBaseT™ (POH) provides power to the Receiver or a compatible Sender unit over the link cable - only one side will need external power
General Specs | |
| Product Weight (lbs.) | .6 |
| Color | Gray |
| Depth (in.) | 4 |
| Width (in.) | 6 |
| Height (in.) | .65 |
| Voltage | 12 |
| Wattage | 12 |
| Manufacturer Warranty | 3 Year |
| Color Finish Name | Gray |
| Shipping Depth (in.) | 7.3 |
| Shipping Width (in.) | 5.2 |
| Shipping Height (in.) | 5.6 |
