Product Dimensions .93"h x 7.7"w x 4"d

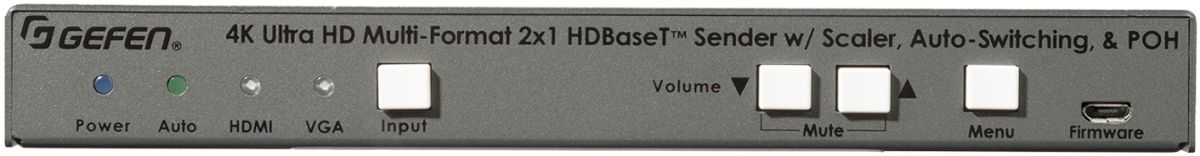

The Gefen EXT-UHDV-HBTLS-TX is a high-performance solution in a compact easy-to-install enclosure for switching 4K Ultra HD HDMI and VGA inputs, and extending them up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K, over a single CAT-5e cable.Read More
Switching between the HDMI and VGA can be set to automatic or be done manually via the front panel button or RS-232. Its HDMI input supports 18 Gbps of data and 600 MHz TMDS Clock frequency, accepting full spec HDMI 2.0 to 4K Ultra HD (3860 x 2160) and 4K Cinema-DCI (4096 x 2160), at 60 Hz 4:4:4 with HDCP 2.2 and 1.4. The HDBaseT extension system supports 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency, and resolution/timing up to 4K 30 Hz 4:4:4. It uses Gefen’s implementation of the HDBaseT technology with enhancements including Advanced EDID Management. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through from the HDMI input to output. The VGA input features a companion L/R analog audio input, and accepts VESA and CEA resolutions up to WUXGA (1920 x 1200 to 60 Hz, 4:4:4) and 1080p Full HD (1920 x 1080 at 60 Hz, 4:4:4).
HDMI Input supports 600 MHz TMDS Clock and data throughput of up to 18 Gbps: 4K Ultra HD (3840 x 2160) or 4K Cinema-DCI (4096 x 2160) up to 60 Hz, 4:4:4
HDBaseT extension supports 300 MHz TMDS Clock and data throughput of up to 10.2 Gbps
Automatic switching of 4K HDMI and VGA
Manual switching of 4K HDMI and VGA via front panel button or RS-232
VGA scaling up to 1920 x 1200 with picture adjustments
Extend HDMI, VGA with analog audio, and RS-232 over a single CAT-5e:
4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
4K Cinema-DCI (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
1080p Full HD (60 Hz) or WUXGA (1920×1200 @ 60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
Analog L/R audio input for VGA
RS-232 control of switching, scaler, and EDID management functions
General Specs | |
| Product Weight (lbs.) | .8 |
| Color | Gray |
| Depth (in.) | 4 |
| Width (in.) | 7.7 |
| Height (in.) | .93 |
| Voltage | 12 |
| Wattage | 9 |
| Manufacturer Warranty | 3 Year |
| Color Finish Name | Gray |
| Shipping Depth (in.) | 10.3 |
| Shipping Width (in.) | 9.2 |
| Shipping Height (in.) | 3.2 |
