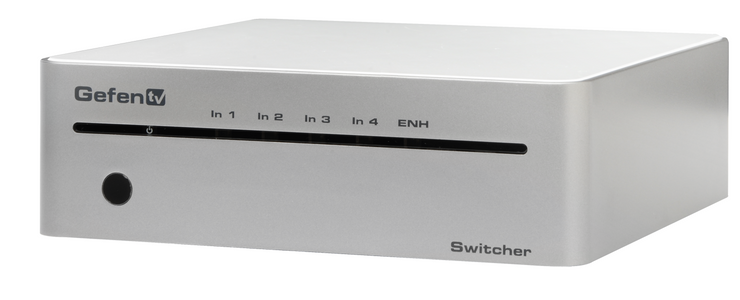

The GefenTV 4x1 Switcher for HDMI with RS232 switches between any of four Hi-Def sources to one HDTV display. Resolutions up to 1080p Full HD with multichannel digital audio are supported.Read More
The GefenTV 4x1 Switcher for HDMI with RS232 switches between any of four Hi-Def sources to one HDTV display. Resolutions up to 1080p Full HD with multichannel digital audio are supported. The front panel LEDs show the currently selected source. This 4x1 Switcher has an auto-switching feature: If a new source is connected or turned on, the Switcher will automatically switch to that input. The 4x1 Switcher will revert to the previous input once the current device is turned off or disconnected. Any of the four Hi-Def sources can be selected by the push-button, IR remote control, or using the RS-232 control.
Supports resolutions up to 1080p Full HD and 1920x1200
Supports 3DTV Pass-Through
Supports LPCM 7.1 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
Local Switching / Auto-Switching feature
RS-232 control
IR remote control
Supports DVI sources and DVI displays with an HDMI-to-DVI adapter
Energy Star Compliant
General Specs | |
| Width (in.) | 7.28 |
| Height (in.) | 2.56 |
| Manufacturer Warranty | 2 Year |
| Product Weight (lbs.) | 3 |
Shipping Information | |
| Length | 12.2 (Inches) |
| Width | 7.28 (Inches) |
| Height | 2.56 (Inches) |
| Weight | 3 (Lbs) |
General | |
| Maximum Pixel Clock | 225 MHz |
| Input Video Signal | 1.2 Volts p-p |
| Input DDC Signal | 5 Volts p-p (TTL) |
| HDMI Input Connectors | (4) Type A, 19-pin female |
| HDMI Output Connector | Type A, 19-pin female |
| RS-232 Connector | DB-9 female |
| Power Supply | 5V DC |
| Power Consumption | 10 Watts (max) |
| Operating Temperature | 0 - 40 C |
| Dimensions | 6.9" W x 2.1" H x 6.9" D |
| Shipping Weight | 6 lbs. |
In The Box | |
| GefenTV 4x1 Switcher for HDMI with RS232 | (1) |
| 6 ft. HDMI cables (M-M) | (4) |
| 6 ft. Serial DB9 cable (M-F) | (1) |
| IR Remote Control (RMT-4IRN) | (1) |
| 5V DC Power Supply | (1) |
| User Manual | (1) |
