Product Dimensions 11.9"h x 6.9"w x 1"d
The Gefen GTB-HD4K2K-444-BLK ToolBox 4x4 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K or 1080p Full HD sources to be routed to up to four Ultra HD displays.Read More

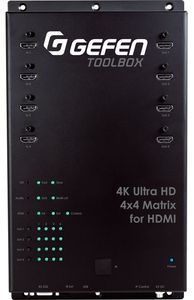

The Gefen GTB-HD4K2K-444-BLK ToolBox 4x4 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. It allows up to four Ultra High Definition 4K or 1080p Full HD sources to be routed to up to four Ultra HD displays. Each Hi-Def source can be routed to either of the connected displays using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings.
Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 4K DCI (4096 x 2160 at 24 and 30 Hz), 1080p Full HD, and 1920x1200 (WUXGA). This HDCP compliant matrix also supports Deep Color and 3D signal.
Multi-channel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through.
Maximum Pixel Clock: 300 MHz
HDMI Input Connectors: (4) Type A 19-pin female, locking
HDMI Output Connectors: (4) Type A 19-pin female, locking
USB Port: (1) Mini-B
RS-232 serial port: (1) DB-9, female
Ethernet (IP Control) Port: (1) RJ-45
FST Selector: (1) tact-type, recessed push-button
Audio Selector: (1) tact-type, recessed push-button
EDID Selector: (1) tact-type, recessed push-button
Routing Selectors: (2) tact-type push-buttons
Power Indicator: (1) LED, blue
FST Indicators: (2) LED, green
Audio Indicators: (2) LED, green
EDID Indicators: (3) LED, green
Routing Indicators: (8) LED, green
IR Sensor: (1), on front panel
IR Extender Port: (1) 3.5mm mini-stereo jack
DC Power Connector: (1) Locking type
Power Supply: 5V DC
Power Consumption: 13 Watts (max.)
Operating Temperature: +32 to 104 °F (0 to +40 °C)
Dimensions (W x H x D): 6.9" x 11.9" x 1.0" (175mm x 302mm x 26mm)
Shipping Weight: 6 lbs. (2.7 kg)
General Specs | |
| Depth (in.) | 1 |
| Width (in.) | 6.9 |
| Height (in.) | 11.9 |
| Voltage | 5 |
| Wattage | 13 |
| HDMI Outputs | 4 |
| HDMI Inputs | 4 |
| Color Finish Name | Black |
| Manufacturer Warranty | 2 Year |
In The Box | |
| 4x4 Matrix for HDMI 4Kx2K (GTB-HD4K2K-444-BLK) | 1 |
| DB-9 Cable (CAB-DB9-6MF) | 1 |
| IR Remote (RMT-16IRN) | 1 |
| 5V DC Power Supply (EXT-PS54AULPN-6) | 1 |
| AC Power Cord (CAB-POWERCORD-XX) | 1 |
| Quick-Start Guide (QSG-GTB-HD4K2K-444) | 1 |
