Gefen 6x2 Matrix for HDMI 4Kx2K

Product Overview

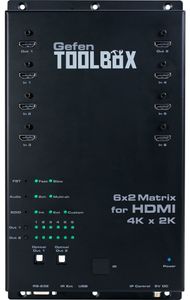

The Gefen GTB-HD4K2K-642-BLK ToolBox 6x2 Matrix for HDMI is a compact and lightweight alternative to rack-mounted matrixes. It allows up to six Ultra High Definition 4K or 1080p Full HD sources to be routed to up to two Ultra HD displays. Each Hi-Def source can be routed to either of the connected displays using the front panel push-button controls, the included IR remote, RS-232 serial control interface, or through IP, using Telnet, UDP, and the built-in web server interface. LED indicators on the top panel display the current routing status, FST mode, audio configuration, and EDID settings.

Video Support

Resolutions supported include 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 4K DCI (4096 x 2160 at 24 and 30 Hz), 1080p Full HD, and 1920x1200 (WUXGA). This HDCP compliant matrix also supports Deep Color and 3D signal.

Audio Support

Multi-channel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) lossless formats are also passed through.

Maximum Pixel Clock: 300 MHz

HDMI Input Connectors: (4) Type A 19-pin female, locking

HDMI Output Connectors: (4) Type A 19-pin female, locking

USB Port: (1) Mini-B

RS-232 serial port: (1) DB-9, female

Ethernet (IP Control) Port: (1) RJ-45

Power Indicator: (1) LED, blue

FST Indicators: (2) LED, green

Audio Indicators: (2) LED, green

Audio Indicators: (2) LED, green

EDID Indicators: (3) LED, green

Routing Indicators: (16) LED, green

FST Selector: (1) tact-type, recessed push-button

Audio Selector: (1) tact-type, recessed push-button

EDID Selector: (1) tact-type, recessed push-buttons

Routing Selectors: (4) tact-type push-buttons

IR Sensor: (1), on front panel

IR Extender Port: (1) 3.5mm mini-stereo jack

DC Power Connector: (1) Locking type

Power Supply: 5V DC

Power Consumption: 13 Watts (max.)

Operating Temperature: +32 to 104 °F (0 to +40 °C)

Dimensions (W x H x D): 6.9" x 11.9" x 1.0" (175mm x 302mm x 26mm)

Shipping Weight: 6 lbs. (2.7 kg)
