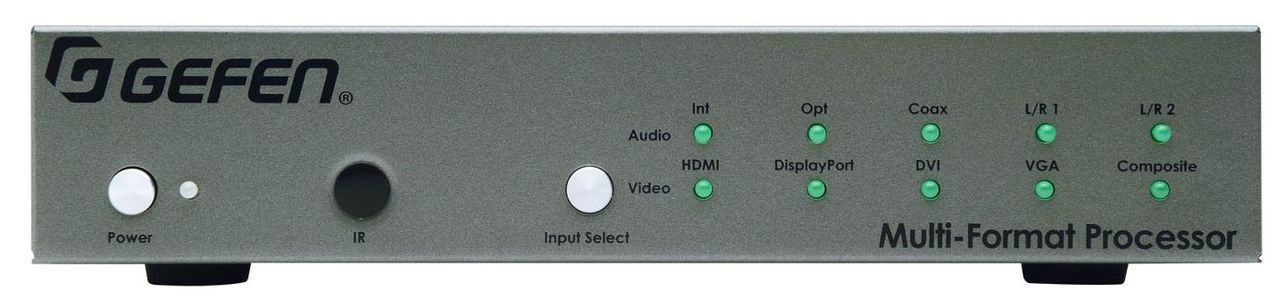

Gefen Audio/Video Multi-Format Processor

Product Overview

The Gefen EXT-MFP Multi-Format Audio/Video Processor is a compact and powerful presentation switcher with cutting edge format conversion and scaling abilities. It supports input and output resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), with HDCP. Its unique features include an intuitive and elegant web server interface, an easy-to-use On Screen Display (OSD), IP (Telnet and UDP) control, RS-232 control, IR control, independently password-protected user and administrator access, advanced EDID management, a wide variety of video inputs including Mac and PC compatible DisplayPort, independent and configurable audio and video routing, input selection via contact closure, assignable input naming, and a compact form factor that can be surface or rack mounted, or placed on a shelf. The EXT-MFP features full compatibility with the Gefen Syner-G software, including Discovery, Show-Me, and IP configuration. It is a complete and cost-effective solution for managing video and audio in classrooms, conference rooms, command centers, and as the backbone of any other high performance system that needs to interface with multiple sources, AV formats, and resolutions in a dynamic environment.

Independent and configurable audio and video routing

Supports input and output resolutions up to 1080p Full HD & 1920 x 1200 (WUXGA)

HDCP compliant

HDMI, DisplayPort, DVI, VGA, and Composite Video inputs

DisplayPort input is compatible with Mac and PC computers

TOSLINK® optical digital, S/PDIF coaxial digital, and two analog L/R audio inputs

Each audio source can be independently assigned to any video source

Audio sources can be temporarily switched away from their assigned video sources

On-screen display (OSD) menu and web server interface allow easy set-up & control

IP control via Telnet, UDP, and web server interface

RS-232 Serial interface for use with an automation control system

Independent IR control of up to four units in proximity, using distinct command sets

Password-protected user and administrative access

Advanced EDID Management for rapid integration of sources and dispays

Assignable input naming

System Configuration Upload/Download function

Plug-and-Play installation with little to no set-up

Locking power supply connector

Rack-mountable using EXT-RACK-1U-GRY (available separately)

Surface-mountable using the included L-brackets
