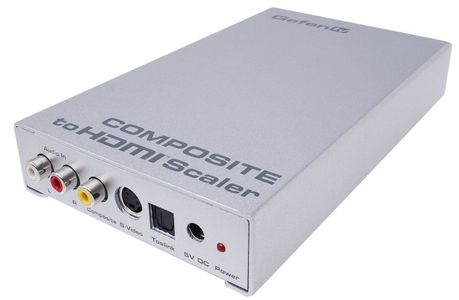

The GefenTV Composite to HDMI Scaler takes either Composite or S-Video as input and converts it to digital HDMI video, scaling it up to a maximum output of 1080p resolution (or 1920x1200 when used with a computer monitor).Read More
Inputs S-Video or Composite Video at 480i or 576i resolutions
Outputs HDMI video at resolutions of up to 1080p
Input resolution is automatically detected while the output resolution and refresh rate can be selected via the on-screen display (OSD) menu system and front panel push-buttons
48MB frame buffer for frame rate conversion
Scales Composite Video and S-Video to HDMI with embedded audio
Supports video output resolutions for computer equipment at up to 1920x1200
General Specs | |
| Width (in.) | 6 |
| Height (in.) | 4.25 |
| Manufacturer Warranty | 2 Year |
| Product Weight (lbs.) | 2.6 |
Shipping Information | |
| Length | 12 (Inches) |
| Width | 6 (Inches) |
| Height | 4.25 (Inches) |
| Weight | 2.6 (Lbs) |
General | |
| Maximum Pixel Clock | 165 MHz |
| Video Amplifier Bandwidth | 10 MHz |
| Input DDC Signal | 5 Volts p-p (TTL) |
| S-Video Connector | Mini-DIN |
| Composite Connector | RCA Jack |
| Power Consumption | 10 Watts (max) |
| Power Supply | 5V 2.6A DC, non-locking plug (2.1mm pin, 5.5mm barrel) |
| Dimensions | (W X H X D): 4.1" x 1.2" x 7" (104.2mm x 30mm x 178mm) |
In The Box | |
| Composite To HDMI Scaler | (1) |
| 6 ft. RCA Composite Cable (M-M) | (1) |
| 5V 2.6A DC Power Supply, non-locking plug (2.1mm pin, 5.5mm barrel) | (1) |
| Quick Start Guide | (1) |
