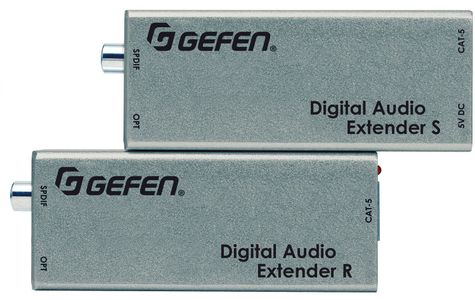

The Gefen EXT-DIGAUD-141 Digital Audio Extender over CAT-5 Extender allows you to place your digital audio components anywhere you want. It supports either S/PDIF or TOSLINK® digital audio signals, which are commonly used to transmit stereo and multichannel digital audio like Dolby Digital® 5.1, DTS, and Dolby® True HD. The Digital Audio Extender uses a Sender and Receiver system connected by a CAT-5e cable to extend the digital audio.Read More
Extends Coaxial S/PDIF and TOSLINK® Optical Digital audio up
Supports multichannel digital audio like Dolby® Digital 5.1, DTS, and Dolby® TrueHD
Extends any S/PDIF and TOSLINK® digital audio device up to 330 feet (100 meters) from the source
Supports multichannel digital audio like Dolby® Digital 5.1, DTS, and Dolby® TrueHD
Supplies clear digital audio over long distances as if connected locally
Streamlines audio installations by allowing source devices to be located in off-site or unseen rack
One CAT-5e cable used for extension
Audio is transmitted digitally for zero signal loss
General Specs | |
Product Weight (lbs.) | 1.2 |
Width (in.) | 6.13 |
Height (in.) | 3 |
Manufacturer Warranty | 2 Year |
Shipping Information | |
Length | 9.31 (Inches) |
Width | 6.13 (Inches) |
Height | 3 (Inches) |
Weight | 1.2 (Lbs) |
General | |
Data Transmission Rate | 12.8 Mb/s |
S/PDIF | 96 kHz performance |
TOSLINK | 192 kHz performance |
Input/Output | S/PDIF, optical TOSLINK |
Link Connector | RJ-45 Shielded |
Power Supply | 5V DC |
Power Consumption | 5W (max) per power supply |
Dimensions | 3.8" x 1.2" x 1.4" (96mm x 30mm x 35mm) |
Shipping Weight | 5 lbs. (2.3 kg) |
In The Box | |
EXT-DIGAUD-141 Sender | (1) |
EXT-DIGAUD-141 Receiver | (1) |
CAB-TLINK-3MM-5ft TOSLINK® cable | (1) |
EXT-PS526AIPN or EXT-PS526AIPN-6 5V Power Supply | (1) |
QSG-DIGAUD-141 Quick Start Guide | (1) |
