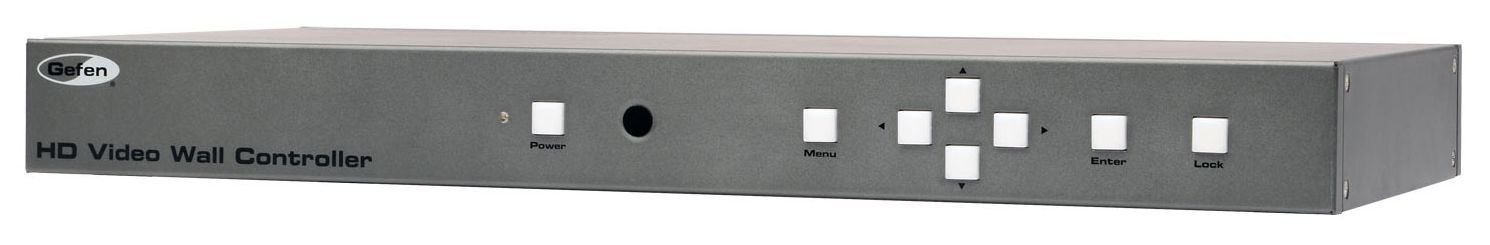

Gefen HD Video Wall Controller

Product Overview

The Gefen HD Video Wall Controller is the perfect solution for entertainment and digital signage applications in retail outlets, clubs, trade shows, control centers, building lobbies, and other similar venues. The HDTV displays are installed in a 2x2 configuration to create a large video wall. It accepts a single HDCP-compliant HDMI source and divides it onto four equally sized displays, each with resolution up to 1080p. The HD Video Wall Controller has very good bezel compensation ability and can accommodate any display bezel width. Power on, Lock on, and menu navigation control buttons are accessible via front panel and the handheld IR remote control, as well as via RS-232 and IP (web server interface, Telnet, and UDP). On-screen Graphical User Interface simplifies the system configuration.

Create a 2x2 video wall from any Hi-Def source, using four HDTV displays

Split and scale a single Hi-Def source to four displays

Input and Output resolutions up to 1080p Full HD and 1920x1200 (WUXGA)

HDCP compliant

Advanced Bezel Compensation feature provides compatibility with virtually any screen frame width, and allows for accurate display of the image

Controllable via front panel, IR, IP (web server interface, Telnet, and UDP), and RS-232

Easy to use on-screen Graphical User Interface (GUI)

Advanced web server interface using an external computer

Handheld IR remote control

Field-upgradeable firmware via web server interface

USB port (reserved for future product enhancements)

Locking power supply connector

1U tall rack-mountable enclosure, rack ears included
