Product Dimensions 1.1"h x 4"w x 3"d

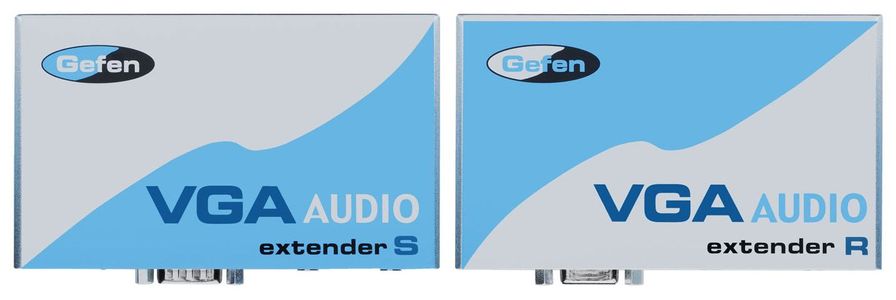

The VGA Extender with L/R Audio extends a VGA computer video and analog L/R audio up to 150 feet over just one CAT5 cable. The Sender hooks up to the computer and the Receiver connects to the remotely extended VGA display and control devices such as keyboard, mouse, and audio devices.Read More
By choosing widely available CAT5e cable for extension, Gefen has made installation simple and flexible. The CAT5e cable can be tucked under carpet or run above a ceiling.
Similar applications can be fulfilled by using EXT-VGA-141SRN or EXT-VGA-141LR, and EXT-AUD-1000
Extends VGA and analog L/R audio over a single CAT-5 cable.
Extends VGA and Analog L/R Audio up to 150 feet (45 meters) over one CAT-5 cable
Supports resolutions up to 1920 X 1080
Bi-directional audio transmission for L/R audio and microphone
Trim pot and DIP switches for fine video equalization
General Specs | |
| Depth (in.) | 3 |
| Width (in.) | 4 |
| Height (in.) | 1.1 |
| Voltage | 5 |
| Wattage | 5 |
| Manufacturer Warranty | 2 Year |
General | |
| Video Amplifier Bandwidth | 350 MHz |
| Input Video Signal | 1.2 V p-p / Input Sync Signal:5V p-p (TTL) |
| Horizontal Frequency Range | 15-70 kHz |
| Vertical Frequency Range | 30 - 170 Hz |
| Video Input Connector (Sender) | (1) VGA HD-15, male |
| Video Output Connector (Receiver) | (1) VGA HD-15, female |
| Audio Input Connector (Sender) | (1) 3.5 mm mini-stereo jack |
| Audio Output Connector (Receiver) | (1) 3.5 mm mini-stereo jack |
| Microphone Output Connector (Sender) | (1) 3.5 mm mini-stereo jack |
| Microphone Input Connector (Receiver) | (1) 3.5 mm mini-stereo jack |
| Link Connector (Sender / Receiver) | (1) RJ-45,Shielded |
| Audio Frequency Response | 20Hz - 20kHz |
| Power Supplies (Sender / Receiver) | 5V DC |
| Power Consumption | 5W (max.) each |
In The Box | |
| VGA Audio Sender unit | (1) |
| VGA Audio Receiver unit | (1) |
| 6 ft. VGA cable (M-F) | (1) |
| 6ft. Audio Cable | (1) |
| 5V DC Power Supplies | (2) |
| User Manual | (1) |
