Product Dimensions 4.80"h x 16.69"w x 3.41"d

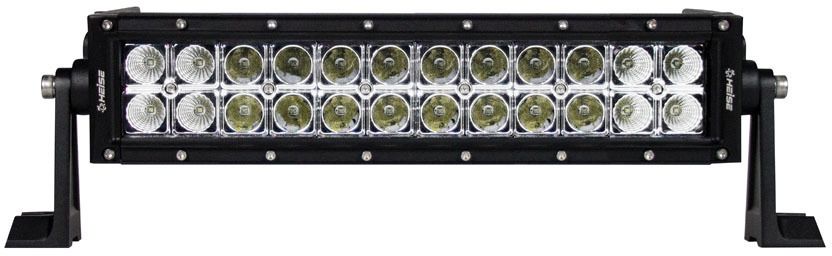

Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one light bar. Heavy duty rubber foot mounts help reduce vibration for LED light bars anywhere.Read More
Advanced thermal management- short circuit and open circuit protection and many other innovative features
Intense spotlights in the center flanked by widebeam driving lights on each side give you everything in one light bar
Heavy duty rubber foot mounts help reduce vibration for LED light bars anywhere
Input Voltage: 10-30V DC
Power Consumption: 72W (24-3W CREE LEDs)
Lumen Flux: 5760lm
Color Temperature: 6000K
Beam Pattern: combo/flood (90 deg)—spot (8 deg)
Housing Material: die-cast aluminum housing
Housing Color: black
Lens Material: PC
Mounting Bracket: die-cast aluminum
Mounting Bolt Drill— .25"
Electronics: integrated-epoxy encapsulated
Hardware: stainless 316
Brackets turned inward – 13.50"
Brackets turned outward – 14.75"
Operating Temperature: -40degC to +60degC
IP Rating: IP67
Protections: reverse polarity
General Specs | |
| Color Finish Name | Black |
| Mounting Hardware Included | Yes |
| Bulb Type | LED |
| Water Resistant | Yes |
| Color Temperature Range | 6000K |
| Width (in.) | 16.69 |
| Depth (in.) | 3.41 |
| Height (in.) | 4.80 |
| Number Of Bulbs | 24 |
