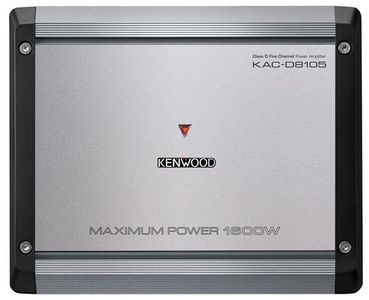

Kenwood Class D 5 Channel Power Amplifier


Model #:

KAC-D8105

Model #: KAC-D8105
298557
Kenwood
$99,999.00

At a Glance

Product Dimensions 2.19"h x 9"w x 7.38"d

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.Read More

Request a Quote

Get to know this product.

Product Overview

Product Overview

Variable High & Low Pass Filter

Bass Boost

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.

Expanded Frequency Response

Supporting Hi-Res Audio, KAC-D8015 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

Useful Documents
Specifications

General Specs

ColorBlack
Depth (in.)7.38
Width (in.)9
Height (in.)2.19
Amplifier ClassClass D
Amplifier Output (Watts)1600
Bluetooth CapableNo
Amplifier Channels5
Impedance2 - 8 Ohms
RMS Power Handling (Watts)500
Water ResistantNo
Peak Power Rating (Watts)1600
Shallow MountNo
Digital InputNo
Speaker Level InputYes
Number Of Outputs5
Minimum Impedance Unbridged2 Ohm
Number Of Inputs3
Product Weight (lbs.)4.5

WarningProposition 65 Warning for California Residents
