Product Dimensions 2"h x 10.25"w x 6.63"d

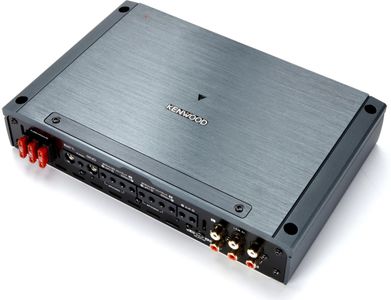

Kenwood's Excelon Reference Series XR901-5 amp can power your entire audio system while taking up an astonishingly small amount of space — it's smaller than a 2" stack of computer paper.Read More
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.
Operating Voltage: 14.4V (11 - 16 V allowable)
Current Consumption: 80 A
Dimensions (W x H x D): 260 x 51 x 169 mm (10-1/4 x 2 x 6-5/8)
Weight: 2.4 kg (5.2 lbs)
Warranty: 2-Year
General Specs | |
| Color | Black |
| Depth (in.) | 6.63 |
| Width (in.) | 10.25 |
| Height (in.) | 2 |
| Amplifier Class | Class D |
| Bluetooth Capable | No |
| Amplifier Channels | 5 |
| Manufacturer Warranty | 2 Year |
| Impedance | 2 - 4 Ohm |
| RMS Power Handling (Watts) | 400 |
| Water Resistant | No |
| Shallow Mount | No |
| Digital Input | No |
| Speaker Level Input | No |
| Number Of Outputs | 5 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 3 |
| Product Weight (lbs.) | 5.2 |
