Product Dimensions 3.13"h x 3.13"w x 3.75"d

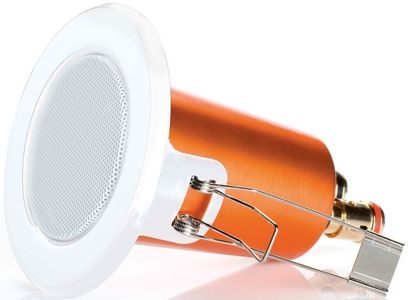

At only 80 mm (31/8 inches) diameter, Monitor Audio's CPC120 is a loudspeaker that offers extraordinary sound quality for a truly innovative application. Its precision engineered micro-design allows it to offer a surprisingly coherent and detailed performance from a standard halogen down-lighter hole.Read More
At only 80 mm (31/8 inches) diameter, Monitor Audio's CPC120 is a loudspeaker that offers extraordinary sound quality for a truly innovative application. Its precision engineered micro-design allows it to offer a surprisingly coherent and detailed performance from a standard halogen down-lighter hole. The CPC120 can be specified with three different grille bezel options.
General Specs | |
| Product Weight (lbs.) | 0.42 |
| Cut Out Depth | 3.63 |
| Cut Out Width | 2.5 |
| Cut Out Height | 2.5 |
| Cut Out Depth Centimeter | 9.15 |
| Cut Out Width Centimeter | 6.5 |
| Cut Out Height Centimeter | 6.5 |
| Connection Type | Gold plated "push" type terminals |
| Color Finish Name | Satin White |
| Frequency Response | 100 Hz – 20 KHz |
| Manufacturer Warranty | Lifetime |
| Collection | Controlled Performance |
| Speaker Connector Type | Spring Clips |
| Max Sound Level Db | 101.9 |
| RMS Power Handling (Watts) | 20 |
| Height (cm.) | 8 |
| Depth (cm.) | 9.6 |
| Width (cm) | 8 |
| Product Weight (kg) | 0.19 |
| Color | White |
| Impedance | 8 ohms |
| Number of Speakers | 2 |
| Sensitivity | 85 |
| Speaker Type | In-Ceiling Speakers |
| Depth (in.) | 3.75 |
| Height (in.) | 3.13 |
| Width (in.) | 3.13 |
General | |
| Frequency Response | 100 Hz – 20 KHz |
| Nominal Impedance | 8 ohms |
| Sensitivity (1W@1M) | 85 dB |
| Maximum SPL | 101.9 dBA |
| Power Handling (RMS) | 20 W; 50 W (using crossover) |
| Recommended Amplifier Requirements | 5 – 20 W; 5 – 50 W (using crossover) |
| Drive Unit Complement | 2" Full range micro-driver |
| Overall Diameter (Including Grille) | 80 mm (31/8") |
| Overall Depth | 96 mm (33/4") |
| Cut-Out Hole Diameter | 65 mm (21/2") |
| Mounting Depth | 91.5 mm (35/8") |
| Fixing Type | 2 x Spring clip fixings |
| Connection | Gold plated "push" type terminals |
| Construction Material | Steel Bezel; Aluminium Enclosure |
| Weight | 0.19 kg (0.42 lb) |
| Sold As | Pair |
