Product Dimensions 4"h x 17.13"w x 12.06"d

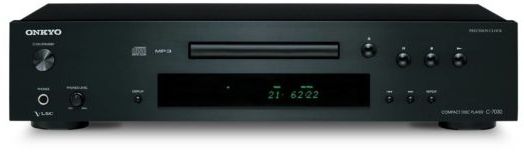

Stunning fidelity from a stylish and affordable CD player. By combining high-quality components and decades of Onkyo audio technical knowledge, the C-7030 CD player delivers a superb playback experience.Read More
Driving the system is a massive, custom-built transformer that provides a clean and stable power supply. Given how affordable the C-7030 is, build quality is exceptional. A 1.6 mm-thick flat chassis base helps reduce unwanted vibrations, while the sleek aluminum front panel provides an elegant finish.
Plays Audio CD, CD-R, CD-RW, MP3 CD, and WMA CD
VLSC™ (Vector Linear Shaping Circuitry) for pulse noise reduction
Custom-designed massive EI transformers
Precision clock (±10 ppm)
Texas Instruments® 192 kHz/24-Bit D/A Converter
Differential headphone amplifier circuitry
25-track memory playback
Random and repeat playback function
2 digital audio outputs (optical and coaxial)
Analog audio output
1 /16˝ (1.6 mm)-thick anti-vibration full-flat chassis
Solid aluminum front panel
3-Mode display dimmer (Normal/Dim/Dimmer)
Auto standby function
RI (Remote Interactive) remote control
ONKYO is an organization consisting of people unsurpassed in the love of sound. We love our work, and that makes us perfectionists. We won’t settle for second best. We strive to complete what we have started. That’s the ONKYO spirit. For the past half century ONKYO components have been recognized as uncommonly musical among those who are truly fanatical about their music. Our aim for the next century is further refinement of our advanced music reproduction technology in order to create a new ONKYO that will become a more familiar name to people throughout the world. The new ONKYO aims to make the world its stage – anywhere there is music.
General Specs | |
Product Weight (lbs.) | 11.7 |
Width (in.) | 17.13 |
Depth (in.) | 12.06 |
Height (in.) | 4 |
Frequency Response | 5 Hz–20 kHz |
Disc Capacity | 1 |
Voltage | 120 |
Frequency | 60 |
Outdoor Approved | No |
Battery Size | AAA |
Remote Control Included | Yes |
Color Finish Name | Black |
Smart Compatible | No |
Wifi Capable | No |
Bluetooth Capable | No |
App Capable | No |
Color | Black |
Shipping Depth (in.) | 16.25 |
Shipping Width (in.) | 22.19 |
Shipping Height (in.) | 7.88 |
Airplay Capable | No |
Audio | |
Frequency Response | 5 Hz–20 kHz/+1 dB, -3 dB (DSP bypass) |
THD (Total Harmonic Distortion) | 0.002% |
Signal-to-Noise Ratio | 106 dB |
Audio Dynamic Range | 100 dB |
Audio Output/Impedance | |
Optical | -22.5 dBm |
Coaxial | 0.5 Vp-p/75 ohms |
Analog | 2 V (rms)/600 ohms |
General | |
Power Supply | AC 120 V~, 60 Hz |
Dimensions (W x H x D) | 17.13˝ x 4˝ x 12.06˝ (435 x 101 x 306 mm) |
Weight | 11.7 lbs. (5.3 kg) |
Carton | |
Dimensions (W x H x D) | 22.19˝ x 7.9˝ x 16.25˝ (564 x 200 x 413 mm) |
Weight | 15.9 lbs. (7.2 kg) |
Supplied Accessories | |
Instruction manual | Yes |
RCA audio cable | Yes |
Remote controller | Yes |
AAA (R03) batteries x 2 | Yes |
