Product Dimensions 34"h x 24.25"w x 30.5"d

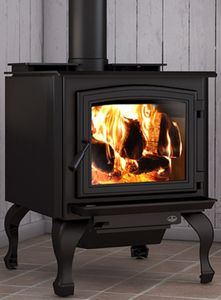

The Osburn 3300 represents the essence of eco-friendly and efficient heating. With an emission rate of 0.95 g/h, this non-catalytic wood stove is among the cleanest on the market and represents an environmentally friendly source of energy. This north-south loading model will keep your family warm all night long, even in very cold weather.Read More
The design of the heater is flawless and enhanced by a set of high density bricks, a stainless steel heat shield added to the C-Cast baffle, a new cast iron door mold, an integrated ash drawer, a top heat deflector as well as decorative side panels.
This new generation wood stove offers a multitude of configuration options. In addition to the traditional or straight legs and the door overlay available in black or brushed silver, you can choose a pedestal, a rigid spark arrester, a blower with thermodisc and a glass ash lip according to your needs. Let yourself be inspired and reinvent your interior comfort!
Fuel type : Dry cordwood (16" recommended)
Heating area : 900-2,300 ft²
Maximum heat output : 90,000 BTU/h (26.4 kW)
Contact the retailer for options and accessories.
BEYOND FIRE
Wood and pellet stoves, inserts and fireplaces. Discover our wide range of premium quality Canadian made heaters specifically designed for your home.
*Wood stove only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the retailer for the actual finish.
General Specs | |
| Color | Black |
| Depth (in.) | 30.5 |
| Width (in.) | 24.25 |
| Height (in.) | 34 |
| Fuel Type | Wood Logs |
| Fireplace Type | Stove |
| Vent Location | Top |
| Collection | 3300 |
| Color Finish Name | Black |
Appliance Performance | |
| Overall firebox volume-ft³ : | 3.3 |
| EPA loading volume-ft³ : | 2.67 |
| Maximum burn time : | 10 h |
| Overall heat output rate: | 15,841 BTU/h (4.64 kW) to 57,041 BTU/h (16.72 kW) |
| Average overall efficiency (dry cordwood) | 71.1 % (HHV), 76.6 % (LHV) |
| Optimum overall efficiency : | 78 % |
| Optimum heat transfer efficiency : | 74 % |
| Average particulate emissions rate : | 0.95 g/h |
| Average CO : | 61.3 g/h |
General Features | |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 14.5" X 11.62" |
| Glass air-wash system | Yes |
| Door opening – dimension (Height) | 12" |
| Door opening - dimension (Width) | 16" |
| Firebox – dimension (Height) | 14.12" |
| Firebox – dimension (Width) | 19" |
| Firebox – dimension (Depth) | 21" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Legs or pedestal |
| Steel thickness – body | 0.18" |
| Steel thickness – top | 0.31" |
| Easy-to-access ash drawer | Yes |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
