Product Dimensions 21.25"h x 27.12"w x 22.37"d

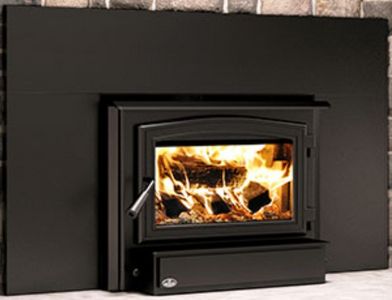

Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth. Give yourself a real haven of peace with an eco-friendly device whose average particle emission rate is prodigiously low at 1.26 g/h!Read More
Inside and out, this insert is engineered from high quality materials that put you at the center of a heating experience for many years: high-density bricks, stainless steel heat shield added to the C-Cast firestop, cast iron door and quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel plated: door overlays, faceplates and faceplate trims.
Fuel type : Dry cordwood (16" recommended)
Heating area : 500-1,800 ft²
Maximum heat output : 65,000 BTU/h (19 kW)
Contact the retailer for options and accessories.
BEYOND FIRE
Wood and pellet stoves, inserts and fireplaces. Discover our wide range of premium quality Canadian made heaters specifically designed for your home.
*Wood insert only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the retailer for the actual finish.
General Specs | |
| Color | Black |
| Depth (in.) | 22.37 |
| Width (in.) | 27.12 |
| Height (in.) | 21.25 |
| Fuel Type | Wood Logs |
| Outdoor Approved | No |
| Fireplace Type | Insert |
| Vent Location | Top |
| Collection | 1700 |
| Color Finish Name | Black |
Appliance Performance | |
| Overall firebox volume-ft³ : | 1.86 |
| EPA loading volume-ft³ : | 1.44 |
| Maximum burn time : | 7 h |
| Overall heat output rate: | 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW) |
| Average overall efficiency (dry cordwood) | 70 % (HHV), 75 % (LHV) |
| Optimum overall efficiency : | 78 % |
| Optimum heat transfer efficiency : | 77 % |
| Average particulate emissions rate : | 1.26 g/h |
| Average CO : | 58 g/h |
General Features | |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 18" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 15.75" x 9.37" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 144 |
| Door opening – dimension (Height) | 8.75" |
| Door opening - dimension (Width) | 17.25" |
| Firebox – dimension (Height) | 11.87" |
| Firebox – dimension (Width) | 19.62" |
| Firebox – dimension (Depth) | 13.5" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 0.18" |
| Steel thickness – top | 0.31" |
| Fireplace opening – minimum (Height) | 21.5" |
| Fireplace opening – minimum (Width) | 27.5" |
| Fireplace opening – minimum (Depth) | 12.87" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
