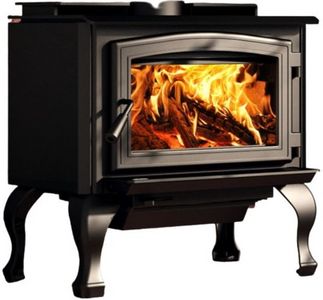

Osburn Black Meduim Wood Stove
At a Glance
Product Dimensions 30.37"h x 24.87"w x 23.25"d
Would you like to add a dose of warmth and coziness to your home? Bring comfort and functionality to your daily life with the Osburn 1700, a meduim wood stove that will quickly become your cold-season essential.Read More
Get to know this product.
Product Overview
Product Overview
Designed to meet the needs of smaller spaces, the Osburn 1700 combines robustness and elegance to allow you to enjoy your heating experience with confidence. This unit is equipped with high-density bricks, a stainless steel heat shield added to the C-Cast firestop, a cast iron door, a built-in ash pan, a top heat deflector that redirects heat to the front of the unit, and side panels to reduce its clearances.
Choose your favorite version by customizing the unit to suit your style: refined door overlays, new leg designs, glass ash lip; significant innovations for the most seasoned experts. Exceeding air quality regulations with emissions as low as 1.26 g/h, the Osburn 1700's efficiency will save you time and money.
Fuel type : Dry cordwood (16" recommended)
Heating area : 500-1,800 ft²
Maximum heat output : 65,000 BTU/h (19 kW)
Contact the retailer for options and accessories.
BEYOND FIRE
Wood and pellet stoves, inserts and fireplaces. Discover our wide range of premium quality Canadian made heaters specifically designed for your home.
*Wood stove only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the retailer for the actual finish.
Useful Documents
Specifications
General Specs | |
| Color | Black |
| Depth (in.) | 23.25 |
| Width (in.) | 24.87 |
| Height (in.) | 30.37 |
| Fuel Type | Wood Logs |
| Fireplace Type | Stove |
| Vent Location | Top |
| Collection | 1700 |
| Color Finish Name | Black |
Appliance Performance | |
| Overall firebox volume-ft³ : | 1.9 |
| EPA loading volume-ft³ : | 1.44 |
| Maximum burn time : | 6 h |
| Overall heat output rate: | 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW) |
| Average overall efficiency (dry cordwood) | 70 % (HHV), 75 % (LHV) |
| Optimum overall efficiency : | 78 % |
| Optimum heat transfer efficiency : | 74 % |
| Average particulate emissions rate : | 1.26 g/h |
| Average CO : | 58 g/h |
General Features | |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 18" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 15 3/4" x 9 3/8" |
| Glass air-wash system | Yes |
| Door opening – dimension (Height) | 8.75" |
| Door opening - dimension (Width) | 17.25" |
| Firebox – dimension (Height) | 11.87" |
| Firebox – dimension (Width) | 19.62" |
| Firebox – dimension (Depth) | 13.5" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 0.18" |
| Steel thickness – top | 0.31" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
