Product Dimensions 34.75"h x 28.87"w x 33.5"d

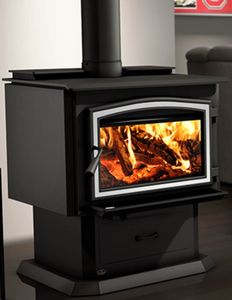

Specifically designed to face the rigor of winter, the Osburn 3500 is an essential for any spacious home, especially in harsh weather conditions. Despite its emissions as 2.3 g/h, this wood stove utilizes a user-friendly, non-catalytic technology as well as a significant reduction of fuel consumption.Read More
The unit features a firebox that can hold up to 50 lb of cordwood, as well as a blower, a thermodisc and an airmate for optimal heat distribution and unparalleled comfort. A choice of door overlay, a fire screen, a glass ash lip are available as options.
Fuel type : Dry cordwood (16" recommended)
Heating area : 1,000-2,700 ft²
Maximum heat output : 110,000 BTU/h (32.2 kW)
Contact the retailer for options and accessories.
BEYOND FIRE
Wood and pellet stoves, inserts and fireplaces. Discover our wide range of premium quality Canadian made heaters specifically designed for your home.
*Wood stove only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the retailer for the actual finish.
General Specs | |
| Color | Black |
| Depth (in.) | 33.5 |
| Width (in.) | 28.87 |
| Height (in.) | 34.75 |
| Fuel Type | Wood Logs |
| Fireplace Type | Stove |
| Vent Location | Top |
| Collection | 3500 |
| Color Finish Name | Black |
Appliance Performance | |
| Overall firebox volume-ft³ : | 3.5 |
| EPA loading volume-ft³ : | 2.88 |
| Maximum burn time : | 10 h |
| Overall heat output rate: | 17,200 BTU/h (5.0 kW) to 57,800 BTU/h (16.9 kW) |
| Average overall efficiency (dry cordwood) | 71 % (HHV), 76 % (LHV) |
| Optimum overall efficiency : | 77 % |
| Optimum heat transfer efficiency : | 75 % |
| Average particulate emissions rate : | 1.6 g/h |
| Average CO : | 73 g/h |
General Features | |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 22" |
| Log positioning | Loading over width and over depth |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18.87" X 11.75" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 130 |
| Door opening – dimension (Height) | 9.87" |
| Door opening - dimension (Width) | 19" |
| Firebox – dimension (Height) | 12.87" |
| Firebox – dimension (Width) | 22.87" |
| Firebox – dimension (Depth) | 20.12" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Pedestal |
| Steel thickness – body | 0.18" |
| Steel thickness – top | 0.31" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
