Product Dimensions 43.37"h x 50.75"w x 31.75"d

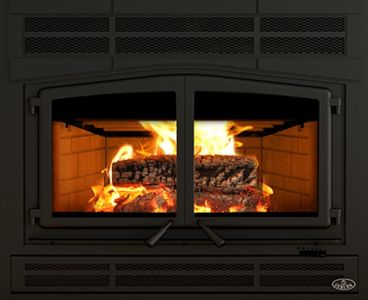

This wood fireplace offers peace of mind due to the combination of energy efficiency and clean heating. A simple solution; its clean design suits any type of decor. Behind its large glass door, the 4.28 cubic foot combustion chamber can hold an impressive 60 lbs of wood.Read More
Fuel type : Dry cordwood (16" recommended)
Heating area : 1,000-2,800 ft²
Maximum heat output : 95,000 BTU/h (27.8 kW)
Contact the retailer for options and accessories.
BEYOND FIRE
Wood and pellet stoves, inserts and fireplaces. Discover our wide range of premium quality Canadian made heaters specifically designed for your home.
*Wood fireplace only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the retailer for the actual finish.
General Specs | |
| Color | Black |
| Depth (in.) | 31.75 |
| Width (in.) | 50.75 |
| Height (in.) | 43.37 |
| Fuel Type | Wood Logs |
| Outdoor Approved | No |
| Fireplace Type | Wall Mounted |
| Vent Location | Top |
| Collection | Horizon |
| Color Finish Name | Black |
Appliance Performance | |
| Overall firebox volume-ft³ : | 4.28 |
| EPA loading volume-ft³ : | 4.28 |
| Maximum burn time : | 11 h |
| Overall heat output rate: | 16,900 BTU/h (5.0 kW) to 43,000 BTU/h (12.6 kW) |
| Average overall efficiency (dry cordwood) | 64% (HHV), 69% (LHV) |
| Optimum overall efficiency : | 70% |
| Optimum heat transfer efficiency : | 69% |
| Average particulate emissions rate : | 1.6 g/h |
| Average CO : | 159.0 g/h |
General Features | |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 25" |
| Log positioning | Loading over width |
| Chimney diameter | 8" |
| Flue outlet diameter | 8" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Door type | Double, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 29.75" x 13.5" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 176 |
| Door opening – dimension (Height) | 12.75" |
| Door opening - dimension (Width) | 33" |
| Firebox – dimension (Height) | 17" |
| Firebox – dimension (Width) | 25.37" |
| Firebox – dimension (Depth) | 17.87" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| USA standard (emissions) | EPA / ASTM WK47329 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 127 |
| Canadian standard (safety) | ULC-S610 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
