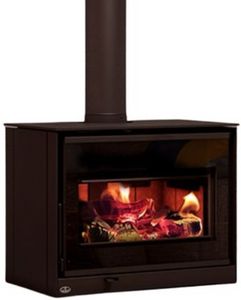

Osburn Inspire Black Wood Stove
At a Glance
Product Dimensions 35.62"h x 27.87"w x 24.25"d
Would you like to add a dose of warmth and coziness to your home? Bring comfort and functionality to your daily life with the Osburn Inspire 2000, a wood stove that will quickly become your cold-season essential.Read More
Get to know this product.
Product Overview
Product Overview
Are you interested in getting off the beaten path? The Inspire offers a style that will surely withstand variable trends with these pure lines of balanced proportions, allowing the brand Osburn to easily compare to European-style products. This more contemporary look is available on steel base, soapstone or even a minimalist base for those who prefer to place the unit directly on a non-combustible podium. Equipped with a 2.3 cubic feet firebox and an outside air intake, this unit will meet the requirements of domestic energy standards, not to mention that a mobile home installation is permitted.
The Inspire meets EPA requirements with emissions as 2.3 g/h and complies with the most stringent North American requirements. A guarantee of quality, reliability and durability, once again Osburn clearly demonstrates its firm commitment to the environment to the delight of wood heating fans.
Fuel type : Dry cordwood (16" recommended)
Heating area : 500-2,100 ft²
Maximum heat output : 75,000 BTU/h (22.0 kW)
Contact the retailer for options and accessories.
BEYOND FIRE
Wood and pellet stoves, inserts and fireplaces. Discover our wide range of premium quality Canadian made heaters specifically designed for your home.
*Wood stove only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the retailer for the actual finish.
Useful Documents
Specifications
General Specs | |
| Color | Black |
| Depth (in.) | 24.25 |
| Width (in.) | 27.87 |
| Height (in.) | 35.62 |
| Fuel Type | Wood Logs |
| Fireplace Type | Stove |
| Vent Location | Top |
| Collection | Inspire 2000 |
| Color Finish Name | Black |
Appliance Performance | |
| Overall firebox volume-ft³ : | 2.4 |
| EPA loading volume-ft³ : | 1.95 |
| Maximum burn time : | 8 h |
| Overall heat output rate: | 14,200 BTU/h (4.16 kW) to 44,500 BTU/h (13.04 kW) |
| Average overall efficiency (dry cordwood) | 72 % (HHV), 77 % (LHV) |
| Optimum overall efficiency : | 79 % |
| Optimum heat transfer efficiency : | 76 % |
| Average particulate emissions rate : | 2.3 g/h |
| Average CO : | 69 g/h |
General Features | |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Door type | Single, glass with steel frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 20.25" X 9.5" |
| Glass air-wash system | Yes |
| Door opening – dimension (Height) | 8.37" |
| Door opening - dimension (Width) | 20" |
| Firebox – dimension (Height) | 11.75" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16.75" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Pedestal |
| Steel thickness – body | 0.18" |
| Steel thickness – top | 0.31" |
| Easy-to-access ash drawer | Yes |
| USA standard (emissions) | EPA Method 28 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
