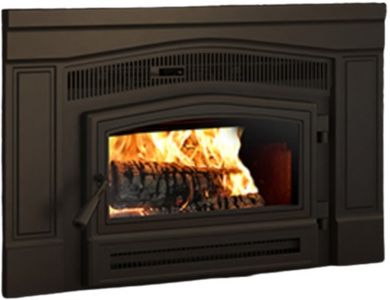

Osburn Matrix Black Small Wood Insert
At a Glance
Product Dimensions 23.87"h x 36"w x 21"d
Treat your family to incomparable comfort with the Matrix 1900 wood-burning insert. Its magnificent cast-iron faceplate is adorned with a patterned upper louver and columns that frame its large door.Read More
Get to know this product.
Product Overview
Product Overview
Its discreet black wooden handle, air control with removable handle as well as flush mount blower disappear to leave room for the delicate details of its faceplate. Its large glass surface highlights a panoramic view of the flames to fully enjoy your moments near the fire.
The Matrix 1900 is a compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.
Fuel type : Dry cordwood (16" recommended)
Heating area : 250-1,200 ft²
Maximum heat output : 45,000 BTU/h (13.19 kW)
Contact the retailer for options and accessories.
BEYOND FIRE
Wood and pellet stoves, inserts and fireplaces. Discover our wide range of premium quality Canadian made heaters specifically designed for your home.
*Wood insert only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the retailer for the actual finish.
Useful Documents
Specifications
General Specs | |
| Color | Black |
| Depth (in.) | 21 |
| Width (in.) | 36 |
| Height (in.) | 23.87 |
| Fuel Type | Wood Logs |
| Outdoor Approved | No |
| Fireplace Type | Insert |
| Vent Location | Top |
| Collection | Matrix 1900 |
| Color Finish Name | Black |
Appliance Performance | |
| Overall firebox volume-ft³ : | 1.1 |
| EPA loading volume-ft³ : | 1.03 |
| Maximum burn time : | 7 h |
| Overall heat output rate: | 8,471 BTU/h (2.48 kW) to 31,700 BTU/h (9.29 kW) |
| Average overall efficiency (dry cordwood) | 75 % (HHV), 80 % (LHV) |
| Optimum overall efficiency : | 82 % |
| Optimum heat transfer efficiency : | 78 % |
| Average particulate emissions rate : | 1.5 g/h |
| Average CO : | 34 g/h |
General Features | |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 17" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18" X 8.12" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 90 |
| Door opening – dimension (Height) | 7.87" |
| Door opening - dimension (Width) | 18.25" |
| Firebox – dimension (Height) | 8.87" |
| Firebox – dimension (Width) | 16.75" |
| Firebox – dimension (Depth) | 12.37" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 0.18" |
| Steel thickness – top | 0.18" |
| Fireplace opening – minimum (Height) | 19" |
| Fireplace opening – minimum (Width) | 25" |
| Fireplace opening – minimum (Depth) | 15.5" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
