Product Dimensions 25.12"h x 36.12"w x 23.12"d

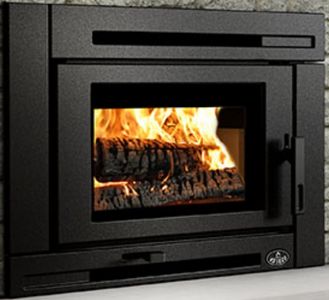

The Matrix wood insert will seduce you with an average particle emission rate as 2.3 g/h and an optimal efficiency of 79%. The latest modifications made to this box are well in tune with the industry standards required for 2020.Read More
Although it retains a unique style that is both massive and sleek, we have reviewed the door mechanism to make it more functional. Adding a set of intermediate trim panels may be required to complete your masonry hearth. Always the same legendary Osburn quality.
Fuel type : Dry cordwood (16" recommended)
Heating area : 500-2,100 ft²
Maximum heat output : 75,000 BTU/h (22.0 kW)
Contact the retailer for options and accessories.
BEYOND FIRE
Wood and pellet stoves, inserts and fireplaces. Discover our wide range of premium quality Canadian made heaters specifically designed for your home.
*Wood insert only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the retailer for the actual finish.
General Specs | |
| Color | Black |
| Depth (in.) | 23.12 |
| Width (in.) | 36.12 |
| Height (in.) | 25.12 |
| Fuel Type | Wood Logs |
| Outdoor Approved | No |
| Fireplace Type | Insert |
| Vent Location | Top |
| Collection | Matrix |
| Color Finish Name | Black |
Appliance Performance | |
| Overall firebox volume-ft³ : | 2.4 |
| EPA loading volume-ft³ : | 1.95 |
| Maximum burn time : | 8 h |
| Overall heat output rate: | 14,200 BTU/h (4.16 kW) to 44,500 BTU/h (13.04 kW) |
| Average overall efficiency (dry cordwood) | 72% (HHV), 77% (LHV) |
| Optimum overall efficiency : | 79 % |
| Optimum heat transfer efficiency : | 76 % |
| Average particulate emissions rate : | 2.3 g/h |
| Average CO : | 69 g/h |
General Features | |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 19.62" X 11.87" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 90 |
| Door opening – dimension (Height) | 8.75" |
| Door opening - dimension (Width) | 17.5" |
| Firebox – dimension (Height) | 11.87" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16.75" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Adjustable threaded legs | Yes |
| Steel thickness – body | .18'' |
| Steel thickness – top | .31'' |
| Fireplace opening – minimum (Height) | 23.37" |
| Fireplace opening – minimum (Width) | 28.87" |
| Fireplace opening – minimum (Depth) | 19.62" |
| USA standard (emissions) | EPA / ASTM WK47329 |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
