Product Dimensions 36.87"h x 27.12"w x 25"d

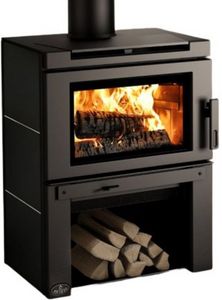

With the same sleek, modern style and vastly improved performance, the Matrix wood burning stove will certainly bring a European touch to your home. Let the Matrix wood stove provided you the warmth, safety and coziness needed during these cold winters.Read More
You can now personalize your device with the steel or soapstone top and side panel options from a local Quebec City mine, reminding us of the richness of our natural resources. Logs will easily fit under the large firebox, making the Matrix a practical and stylish heater. The Matrix is equipped with a 130 CFM fan to ensure optimal heat distribution. Enjoy the comfort of winter more than ever before!
Fuel type : Dry cordwood (16" recommended)
Heating area : 500-2,100 ft²
Maximum heat output : 75,000 BTU/h (22.0 kW)
Contact the retailer for options and accessories.
BEYOND FIRE
Wood and pellet stoves, inserts and fireplaces. Discover our wide range of premium quality Canadian made heaters specifically designed for your home.
*Wood stove only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the retailer for the actual finish.
General Specs | |
| Color | Black |
| Depth (in.) | 25 |
| Width (in.) | 27.12 |
| Height (in.) | 36.87 |
| Fuel Type | Wood Logs |
| Fireplace Type | Stove |
| Vent Location | Top |
| Collection | Matrix |
| Color Finish Name | Black |
Appliance Performance | |
| Overall firebox volume-ft³ : | 2.4 |
| EPA loading volume-ft³ : | 1.95 |
| Maximum burn time : | 8 h |
| Overall heat output rate: | 14,200 BTU/h (4.16 kW) to 44,500 BTU/h (13.04 kW) |
| Average overall efficiency (dry cordwood) | 72 % (HHV), 77 % (LHV) |
| Optimum overall efficiency : | 79 % |
| Optimum heat transfer efficiency : | 76 % |
| Average particulate emissions rate : | 2.3 g/h |
| Average CO : | 69 g/h |
General Features | |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for an alcove installation | Yes |
| Approved for a mobile home installation | Yes, with fresh air intake |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 19.62" X 11.87" |
| Glass air-wash system | Yes |
| Door opening – dimension (Height) | 8.75" |
| Door opening - dimension (Width) | 17.5" |
| Firebox – dimension (Height) | 11.87" |
| Firebox – dimension (Width) | 21" |
| Firebox – dimension (Depth) | 16.5" |
| Firebox lined with refractory bricks for better heat distribution | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Model | Pedestal |
| Steel thickness – body | 0.18" |
| Steel thickness – top | 0.31" |
| Easy-to-access ash drawer | Yes |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S627 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
