Rockford Fosgate® Compact Digital Media Receiver 2.7" Display

Product Overview

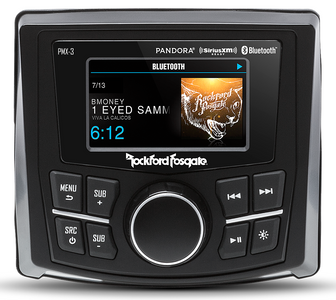

The PMX-3 compact digital media receiver, designed for marine and motorsports applications, features a 2.7"full color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration.

The PMX-3 is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such SiriusXM tuner compatibility, Pandora control capabilities and Bluetooth audio steaming with album art support1, this unit becomes a true command center of any system. Output flexibility comes with a 4x50 @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output. 1Android devices equipped with limited functionality. Please refer to owners manual for details.

We've also upgraded the unit to feature a reverse camera composite video input with reverse trigger control and a day/ night display mode for better viewing in low light conditions. Finally, add in the EEprom memory system, custom GUI interface and wired remote expansion capabilities and you have the only media receiver you'll ever need.

2.7" Full color Thin Film Transistor display

SiriusXM-Ready™ (SXV300 module) with color channel logos (18 channel presets)

Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed

Integrated voltage gauge w/ low voltage alert

Wired remote ready (up to 3 remotes)

Two-piece mounting system to secure panel to mounting surface

Front Panel Sub Control

Upgradeable Firmware and Bluetooth Software via USB

IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects

ASTM: B117 Salt Fog & D4329 UV Exposure Tested

Single Zone output with 2 channels front full range and 2 channels rear/ subwoofer selectable rated at 2 volt

Internal power amplifier 4x45W 2Ω stable

Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive broadcast information

Licensed Pandora control (Apple direct USB or BT/Android via Bluetooth)

Made for iPhone apple certified

Bluetooth streaming audio (A2DP) protocol version 1.4 installed

Rear USB With 1A Charging Only

Rear AUX-In (L/R)

Simple Secure Pairing (SSP)

Display album art from connected iPhones on the radio display

Folder browsing via BT connected iPhones

Dedicated DSP audio processors for each zone with independent 7 Band EQ + Punch EQ

Selectable high pass and low pass crossover points for each zone

Selectable crossover slopes of 12dB or 24 dB for each zone

Adjustable input gain for each source

Waterproof Rotary Encoder Volume Control

Tactile convex buttons for easy identification

White LED Button Illumination

Wired and front panel illumination control

Wet Bonded Display

Epoxy coated circuit board for water resistance

External trigger input to activate reverse camera mode

Direct composite video input connection

Day/Night display mode

2-Year Warranty

SiriusXM-Ready®

This radio is ready to accept SiriusXM® programming.

Element Ready™ - Source Units

These source units are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

Built In Bluetooth®

Built In Bluetooth®

Pandora®

Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.

Made for iPod/iPhone

This device supports the Apple "Made for iPod/iPhone" protocol.

Made for Android

This device supports the Google "Made for Android" protocol.

USB Playback

This source unit supports playback from a USB device.

ASTM B117 & D4329 Tested

ASTM B117 & D4329 Tested

IPX6 Water Intrusion Rating

IPX6 Water Intrusion Rating

FLAC

The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that audio is compressed in FLAC without any loss in quality.
