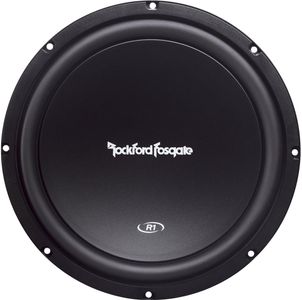

Product Dimensions 12.99"h x 12.99"w x 4.94"d
The R1S4-12 features a 4-Ohm Single Voice Coil design, 200 Watt RMS power handling, and is optimized for both sealed and vented enclosures.Read More
Fiber reinforced painted paper-pulp cone
Laser-etched aluminum dustcap
High durability compressed foam surround
Fatigue resistant poly-cotton spider with integral woven leads
Proprietary powder coated stamped steel frame with spider cavity venting
Bumped backplate with vented pole piece for greater thermal/mechanical power handling
High-temp copper voice coil with aluminum former
High-grade Y30 Ferrite magnet
Integrated spring-loaded nickel-plated push terminals
Integrated ABS decorative trim ring
1 Year Standard Warranty
General Specs | |
| Depth (in.) | 4.94 |
| Width (in.) | 12.99 |
| Height (in.) | 12.99 |
| Woofer Size | 12" |
| Mount Depth | 4.94 |
| Product Weight (lbs.) | 9.25 |
| RMS Power Handling (Watts) | 200 |
| Peak Power Rating (Watts) | 400 |
| Subwoofer Size | 12" |
| Shallow Mount | No |
Construction | |
| Enclosure Type: | Sealed |
Specifications | |
| Maximum Power Handling: | 400 |
| Sensitivity: | 90 dB |
| Frequency Response: | 250 |
Styling | |
| Color: | Black |
