Russound® Multiline Display Keypad
Model #: MDK-C6
186282
Russound
$99,999.00
At a Glance
The MDK-C6 Multiline Display Keypad is a wall-mounted, standard fit, double-gang keypad for all MCA-Series controllers.Read More
The MDK-C6 Multiline Display Keypad is a wall-mounted, standard fit, double-gang keypad for all MCA-Series controllers.Read More

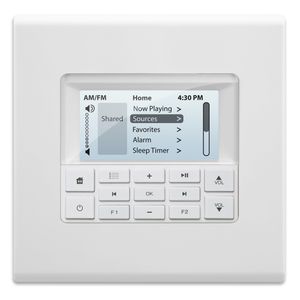

The MDK-C6 Multiline Display Keypad is a wall-mounted, standard fit, double-gang keypad for MCA-Series controllers.
The keypad's gray scale LCD screen displays real-time information including playlist, channel, artist, song title, genre and more when used with compatible Russound sources. Responsive hard buttons offer access to virtually every system feature and source control function. The buttons and screen brightness are adjustable and can be dimmed at the owner's discretion.
High-resolution multiline display
Menu-driven interface
IR receiver with auxiliary input (plasma proof option)
Fits in a standard 2-gang box
Flush-Mount mounting option available via Wall-Smart
Available in five colors
General Specs | |
| Compatibility | MCA-Series Controllers |
General | |
| Color | White |
| Shipping Dimensions | 7.8" (W) x 3.3" (H) x 7.3" (D), (19.7 x 8.3 x 18.4 cm) |
| Shipping Weight | 1.0 lbs (0.5 kg) |
| CAT-5e Connection | RJ-45 (T568A standard) |
| Display | 70 mm (W) x 35 mm (H), High resolution LCD |
| Power Requirement(s) | 275mA @ 12VDC MAX |
| Wall Surface Dimensions | 4.5" (W) x 4.5" (H), (11.43 cm x 11.43 cm) |
