Russound® Table Top Volume Control


Model #:

TBL-75

Model #: TBL-75
187110
Russound
$99,999.00

At a Glance

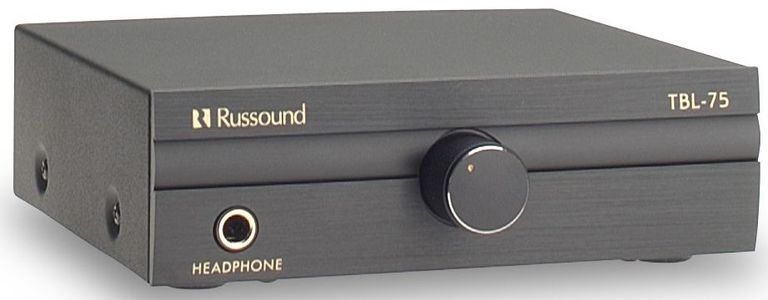

The TBL-75 is a free-standing, 126-watt tabletop volume control with a headphone jack. It connects to the speaker outputs of an amplifier or receiver and can connect to a pair of speakers or just provide volume control for a pair of headphones. Connecting headphones disconnects the speakers in the room for private listening.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

An impedance switch on the TBL-75 allows installers to easily match the load of multiple speaker pairs to the amplifier impedance without the need for a speaker selector or other impedance-matching equipment.

All Russound volume controls are made with precision autoformers for high-fidelity sound, excellent frequency response, no heat buildup, and maximum power transfer from the amplifier to the speakers.

Freestanding design can be located on a desk, counter, or tabletop

Controls a pair of speakers, headphones, or both

Selects 11 steps of volume plus off

Allows impedance matching for up to 16 speaker pairs per system

Precision autoformers assure long life and superior performance

Useful Documents
Specifications

General Specs

Connector TypeSpring Terminals
Connection TypeSpring Terminals

General

Volume ControlYes
Sold AsEach
ColorBlack
Shipping Dimensions9.9" (W) x 2.5" (H) x 8.8" (D), (25.2 x 6.4 x 22.2 cm)
Shipping Weight2.4 lbs (1.1 kg)
Audio Output(s): Headphones1/4" (6.35 mm) TRS jack
Connector(s)Spring terminals
Frequency Response20 Hz - 20 kHz, +1.0/-0.5 dB at rated power
Impedance Matching TypeAutoformer
Max Wire Size14 AWG (1.9 mm)
Power Handling126 watts peak, 42 watts RMS continuous per channel
Speaker ImpedanceMin: 4 ohms
Volume Control12 steps including Off; total attenuation 43 dB

WarningProposition 65 Warning for California Residents
