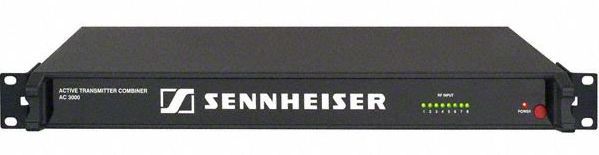

Sennheiser AC 3000 Antenna Combiner

The AC 3000 is an active antenna combiner for wireless monitoring applications with up to 8 transmitters connected to one common transmitter antenna. Due to its broadband design the AC 3000 can be used in the whole UHF range from 470 – 870 MHz. It significantly reduces intermodulation of wireless monitoring transmitters while keeping cabling limited to the minimum.

Features

• Active Combiner
• Significant improvement of RF performance for multi-channel systems
• Broadband RF design to cover the whole UHF frequency range from 470 - 870 MHz
• LEDs for RF input level indication
• Robust 19'' housing in 3000 series design
• Compatible with SR 3054, SR 3056, SR 3254, SR 3256 and SR 300 G2 transmitters

What's in the box?

• AC 3000, rack-mount, power cable

Technical Data

• Dimensions 19 '', 1 U
• Nominal impedance 50 Ω
• RF frequency range 470 - 870 MHz
• Antenna connector BNC
• Input voltage range max. 80 mW RF input power per channel
• Mains frequency 50 - 60 Hz
• Mains voltage 100 - 240 V
• Transmission loss 0 dB (+/- 1 dB)
