Product Dimensions 40.6"h x 36.8"w x 26.6"d
Like the great French general, the Valcourt team has been able to use its tactical skills to upgrade this non-catalytic unit, so that it perfectly combines the new heating technology with all its elegance.Read More
Customize your fireplace: five faceplate louvers as well as black or brushed nickel door overlays are available to enhance your decor. In addition to offering a distinctive look, the appliance follows the most restrictive EPA regulations, making it the fireplace of choice for those who want to use wood as a renewable and clean source of heat.

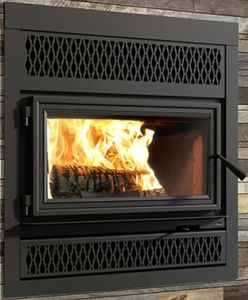

Shown in black square faceplate
Shown in classic style faceplate louver
Shown in black door overlay
Made in Canada
Connect with your local dealer to see options and actual samples.
SBI is a Canadian family-owned business that designs, builds and markets residential heating products that are sold throughout the world.
*Any installation must be done according to the data and drawings detailed in the owner’s manual.
*Wood fireplace only, all other products are sold separately. Images may not reflect the actual size. Color in images may differ in person; see the local dealer for the actual finish.
General Specs | |
| Color | Black |
| Depth (in.) | 26.6 |
| Width (in.) | 36.8 |
| Height (in.) | 40.6 |
| Fuel Type | Wood Logs |
| Outdoor Approved | No |
| Fireplace Type | Wall Mounted |
| Collection | Lafayette IIS |
| Manufacturer Warranty | Limited Lifetime |
| Color Finish Name | Black |
| BTU Heat Rating | 80000 |
Additional Information | |
| Fuel type | Dry cordwood (16" recommended) |
| Recommended heating area-ft² | 750 - 2,200 |
| Overall firebox volume-ft³ | 2.5 |
| EPA loading volume-ft³ | 1.94 |
| Maximum burn time | 8 h |
| Maximum heat output-dry cordwood | 80,000 BTU/h (23.4 kW) |
| Overall heat output rate <: | 12,700 BTU/h (3.72 kW) to 60,700 BTU/h (17.79 kW) |
| Average overall efficiency (dry cordwood) | 64% (HHV) (4) 68% (LHV) (5) |
| Optimum overall efficiency | 70% |
| Optimum heat transfer efficiency | 68% |
| Average particulate emissions rate | 1.2 g/h |
| Average CO | 98 g/h |
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Door type | Single, glass with steel frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 23.9" x 10.5" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 176 |
| Door opening – dimension (Height) | 10.5" |
| Door opening - dimension (Width) | 25.4" |
| Firebox – dimension (Height) | 12.1" |
| Firebox – dimension (Width) | 20.4" |
| Firebox – dimension (Depth) | 13'' |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 127 |
| Canadian standard (safety) | ULC-S610 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
